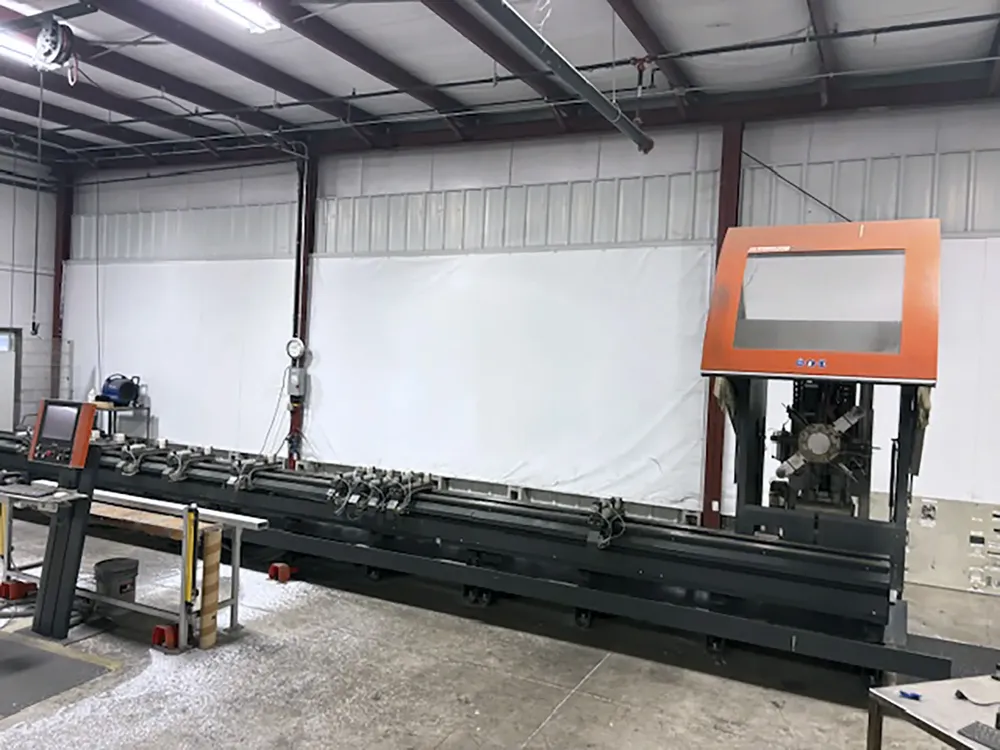

Elumatec SBZ130 CNC 3-Axis Profile machine

X-Travel: 401.2" (10200mm)
Y-Travel: 19.1" (485mm)
Z-Travel: 13.4" (340mm)
Max Machining Length: 401.6"
Rapid Traverse Speed: 2362 in/min (approx. 197 ft/min)

Control: Elumatec
Windows XP platform
Servo axis for 8-fold tool changer
Absolute encoder on all axes
Two-section clamping system
Pneumatic material stop tilting (left side)
Pneumatic lowerable material stop (center area)
Automatic clamping position recognition
Automatic clamping movement
8-way pulsed spray coolant system
Shaving trough
2 light barriers for operator protection
Left and right protection fence
USV uninterrupted power supply unit
Mobile operation terminal
Material clamping: 12 pieces
Pneumatic air pressure: 7 bar
Air consumption: 100 L/min

Spindle Speed: 15000 RPM (high-speed option)
Spindle Power: 7.4 HP

Tool changer: 8-position system
Weight: 8000 kg
