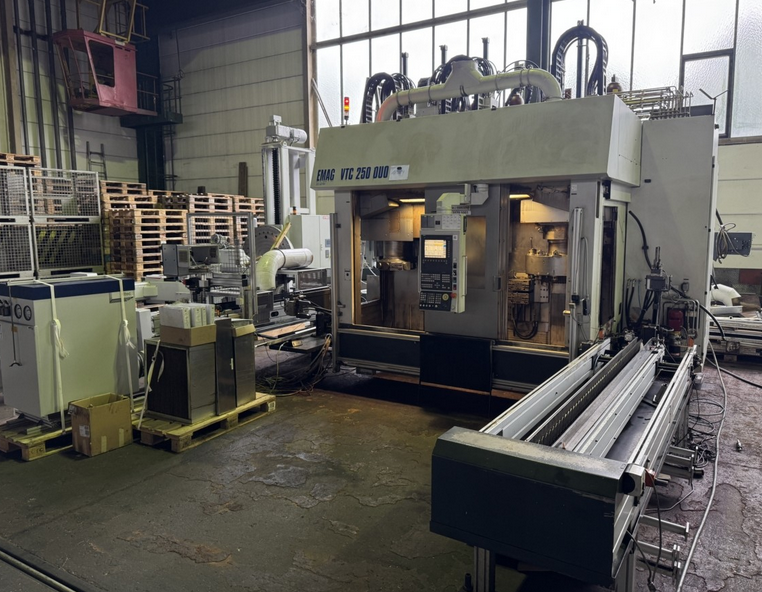

Emag Siemens SINUMERIK 840D 6000 rpm (stepless) VTC 250 DUO

Control: Siemens SINUMERIK 840D
X-travel: 300 mm
Z-travel: 700 mm
Feed X-axis: 1–30,000 mm/min
Feed Z-axis: 1–40,000 mm/min
Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 40 m/min
Feed force X-axis: 9,000 N
Feed force Z-axis: 10,000 N
Turning diameter: 140 mm
Swing diameter: 250 mm
Turning height: 380 mm
Spindle speed range: 1–6,000 rpm (stepless)
Power capacity at 40% load: 38 kW
Spindle head DIN 55026 size: 6
Spindle diameter in front bearing: 110 mm
Tool taper: VDI 40
No. of tools in turret 1: 11
No. of tools in turret 2: 11
Total power requirement: 70 kW
Approx. machine weight: 22 t
Approx. machine dimensions (L x W x H): 5.80 x 8.60 x 3.80 m

Chip conveyor
Dust exhauster
Infeed and outfeed system
Turning gripper
