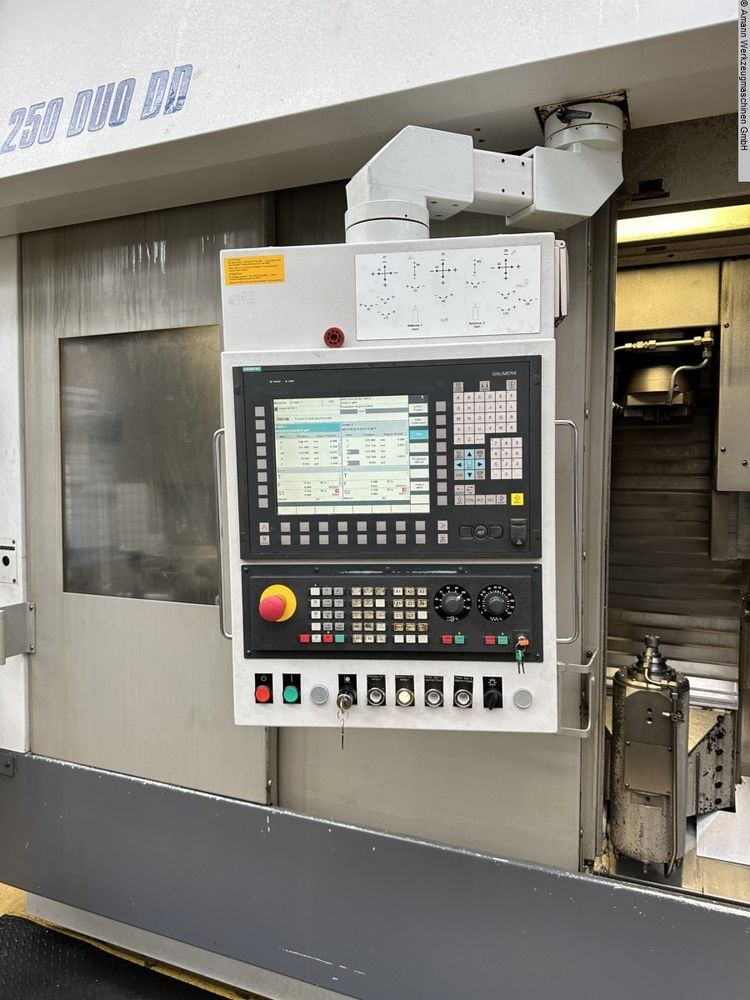

Emag SIN840 PL 5,000 rpm VTC 250 DUO 2 Axis

X-axis travel: 300 mm
Z-axis travel: 700 mm
Feed X-axis: 1–30,000 mm/min
Rapid traverse X-axis: 30 m/min
Feed force X-axis: 9,000 N
Feed Z-axis: 1–40,000 mm/min
Rapid traverse Z-axis: 40 m/min
Feed force Z-axis: 10,000 N
Control: SIN840 PL
Turning diameter max: 140 mm
Swing diameter: 250 mm
Turning height: 630 mm
Spindle speed: 1–5,000 rpm
Power capacity at 40% load: 38 kW
Spindle head size: DIN55026 No. 6
Spindle diameter in front bearing: 110 mm
Number of tools in turret 1: 12
Number of tools in turret 2: 12
Tool taper: VDI 40 DIN 69880
Total power requirement: 70 kW
Machine weight: 25 t
Machine dimensions: 6.8 × 4.7 × 4.3 m
Chip conveyor
Spindle cooling system HYFRA
Coolant system Knoll
