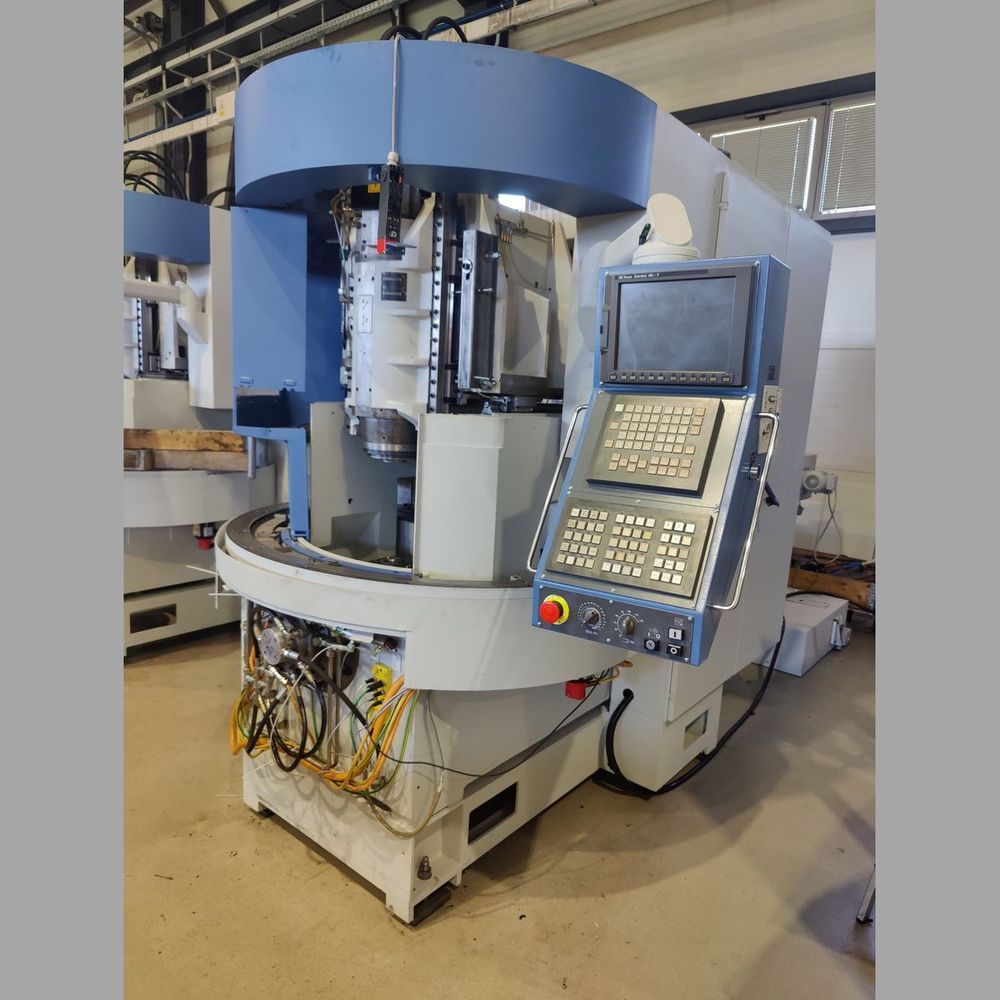

Emag VL 3 Maximum swing diameter: 210 mm

X-axis travel: 400 mm
Z-axis travel: 200 mm
Rapid traverse X-axis: 60 m/min
Rapid traverse Z-axis: 30 m/min

CNC control: Fanuc 18i TB
Number of axes: X/Z
Linear glass scales X-axis
Linear glass scales Z-axis
Fully enclosed work area
Work area lighting
Oil mist extraction unit
Chip conveyor (slat band chain)
Coolant unit 80 l/min at 7 bar
Loop-type part storage conveyor
Automatic central lubrication

Maximum chuck diameter: 170 mm
Maximum workpiece diameter: 130 mm
Maximum workpiece length: 100 mm

Spindle speed: 7,500 rpm
Spindle power: 25/16 kW
Spindle torque: 134/85 Nm
Spindle diameter front bearing: 80 mm
Spindle flange: DIN 55026 size 5

Tool stations: 12
Driven tool stations: 12
Tool holder: VDI 40
Tool drive speed: 6,000 rpm

Feed force X-axis: 5000 N
Feed force Z-axis: 5000 N

Discharge height chip conveyor: 1250 mm

Total power requirement: 28 kVA
Operating voltage: 400 V / 50 Hz
Machine dimensions: 2500 x 1900 x 2300 mm
Total space requirement: 3600 x 1900 x 2300 mm
Machine weight: 5500 kg
