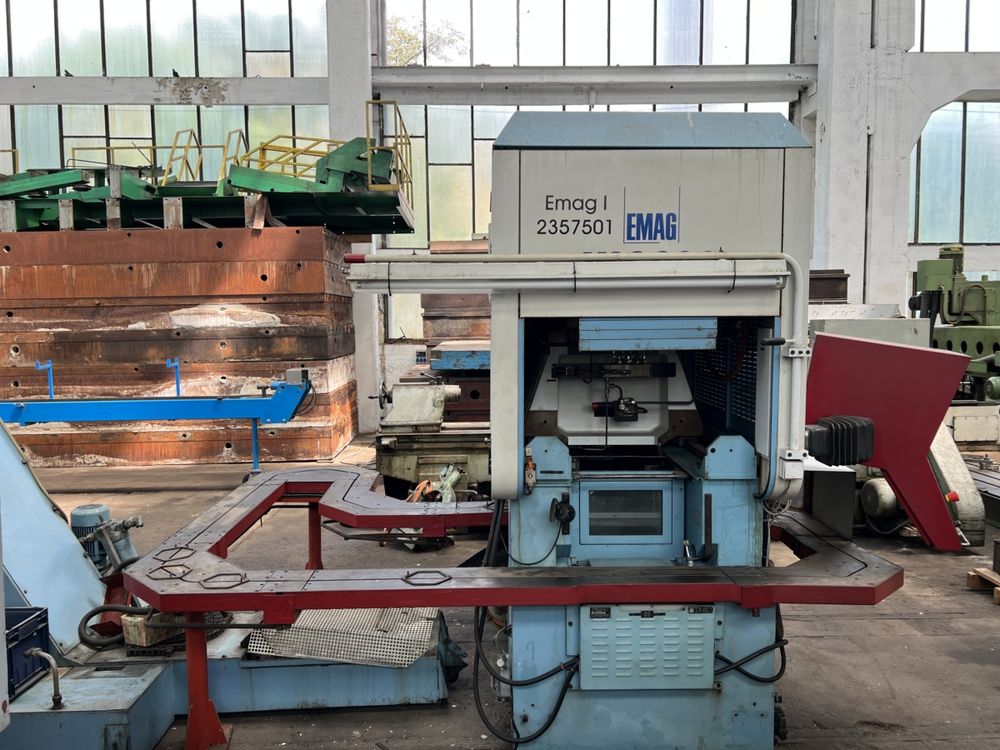

Emag VSC 200 Max. swing over bed: 290 mm

Ref : 2796578-3-MT

Condition : Used

Manufacturer : Emag

Model : VSC 200

Short Description : Max. swing over bed: 290 mm

Year(s) : 1995

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Overhauled 2007
X-axis travel: 550 mm
Z-axis travel: 200 mm
Rapid traverse X/Z: 30 / 20 m/min
Feed rate: 11 m/min
Control: Siemens 840 C
Direct linear measuring system
Glass scales on all axes
Measuring probe
Spindle speed: 6,000 rpm
Torque: 480 Nm
Chuck diameter: 200 mm
Driven tools: 7.8 kW
12-position turret
VDI 40
Sauter turret
Total power requirement: 35 kW
Chip conveyor
Chip conveyor width: 300 mm
Chip discharge height: 800 mm
Heidenhain revolving pick-up storage belt
Automatic parts loading feed belt
Machine weight: 6.5 t
Headstock completely renewed in 2007
Feed unit replaced
