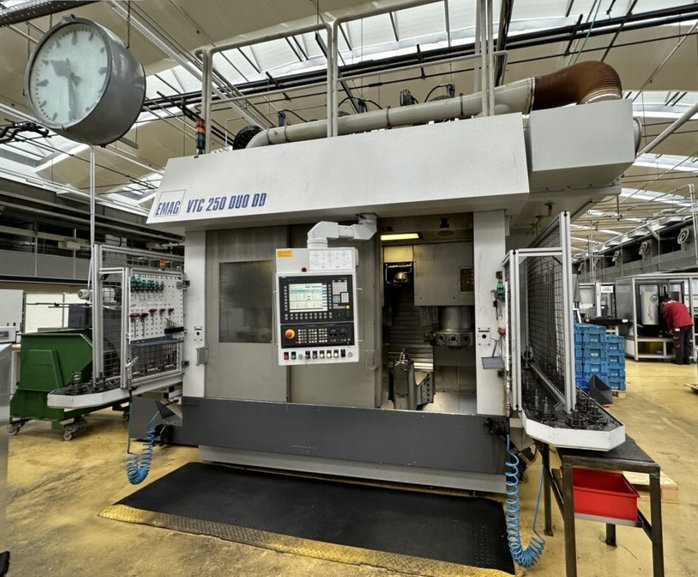

Emag VTC 250 DUO Swing diameter: 250 mm

Ref : 2805904-3-AW

Condition : Used

Manufacturer : Emag

Model : VTC 250 DUO

Short Description : Swing diameter: 250 mm

Year(s) : 2008

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 300 mm
Z-axis travel: 700 mm
Control: SIN840 PL
Turning diameter: 140 mm
Turning height: 630 mm
Spindle speed: 1–5000 rpm
Spindle power: 38 kW
Spindle nose: DIN 55026 Size 6
Front spindle bearing diameter: 110 mm
X-axis feed: 1–30000 mm/min
X-axis rapid traverse: 30 m/min
X-axis feed force: 9000 N
Z-axis feed: 1–40000 mm/min
Z-axis rapid traverse: 40 m/min
Z-axis feed force: 10000 N
Turret 1: 12 positions
Turret 2: 12 positions
Tool system: VDI 40 DIN 69880
Chip conveyor
Spindle cooling system
Knoll coolant system
Total power: 70 kW
