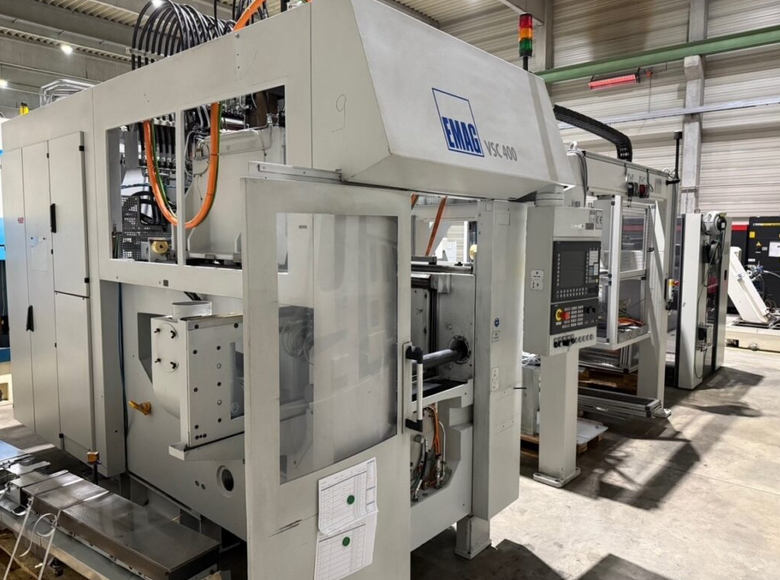

Emag VSC 400 Swing Diameter: 420 mm

Ref : 2803412-3-AW

Condition : Used

Manufacturer : Emag

Model : VSC 400

Short Description : Swing Diameter: 420 mm

Year(s) : 2012

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Turning Diameter: 400 mm
X-Axis Travel: 850 mm
Z-Axis Travel: 315 mm
Spindle Head: DIN 55026 Size 11
Spindle Bearing Diameter: 140 mm
Spindle Speed: Max 4000 rpm
Tool Turret: 12-position C5 Capto
Rapid Traverse (X/Z): 45 / 30 m/min
Feed Force: 11 kN
Control: Not specified
Chip Conveyor
Hard Turning Capability
Dry Machining
Promot Portal and Cellmaster System
Total Power Requirement: 58 kW
Machine Weight: 9 t
Machine Dimensions: 9.5 x 4.5 x 3.0 m
