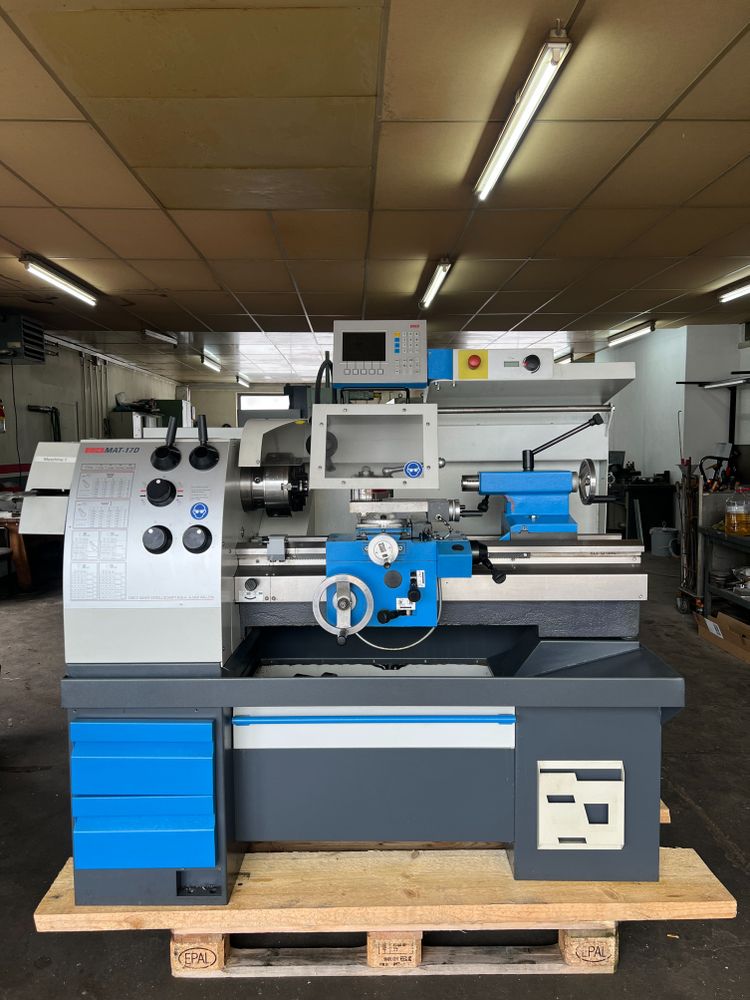

Emco Engine Lathe Variable Speed Emcomat 17D

EMCO Emcomat 17D
Year: 2013

800 kg weight
NC control
700 mm distance between centers
170 mm center height
340 mm swing over bed
190 mm swing over cross slide
260 mm bed width
600 mm longitudinal travel
220 mm cross slide travel
110 mm top slide travel
410 mm cross slide length
150 mm cross slide width
380 mm guide length
20 x 20 mm tool cross-section
Top slide swivel range 60°/120°
DIN 55029 (Camlock S5) main spindle
50 mm spindle bore
DIN 7178 taper 1:22
70 mm spindle diameter at front bearing
40–3000 rpm spindle speed
Stepless speed regulation
4 mechanical speed ranges
5.3 kW drive motor at 40% duty cycle
640 Nm maximum torque
