Emmegi Engine Lathe 2800 rpm DOPPIA MAGIC

Minimum cutting length: 310 mm
Maximum cutting length: 5000 mm
Blade diameter: 450 / 500 mm
Blade shaft diameter: 32 mm
Blade motor power: 2.2 kW
Blade speed: 2800 rpm
DC motor power: 400 W
Installed power: 5.6 kW
Blade feed speed: 0 – 60 mm/s
Blade cutting speed (450 blade): 66 m/s
Blade cutting speed (500 blade): 73 m/s
Cart translation speed: 20 m/min
Operating pressure: 6 – 8 bar
Air consumption per cycle: 15 L
Weight: 1400 kg
Machine dimensions: 6480 x 1400 x 1838 mm

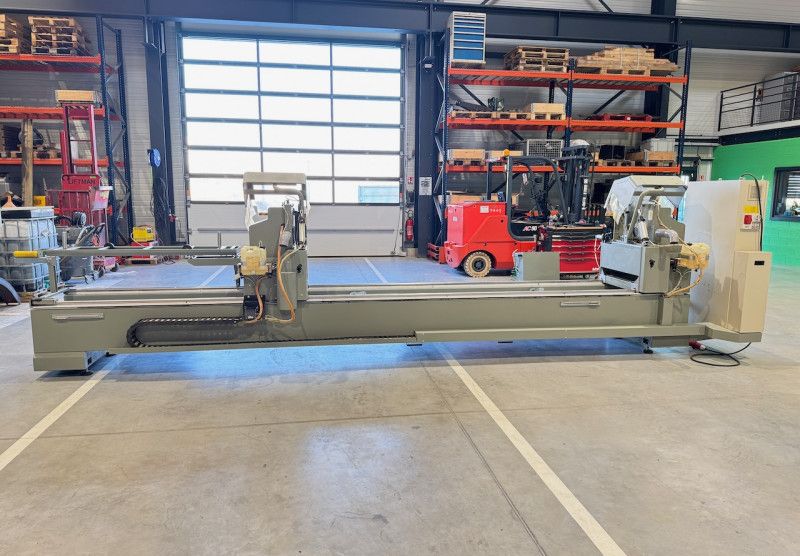

Double-head electronic saw
Automatic moving head
Cutting for aluminum profiles
Two saw heads
Pneumatic blade rotation
Angle range: 90° internal to 22°30' external
Manual intermediate angle adjustment
Oleopneumatic blade feed cylinder
Blade cooling with adjustable flow
2 blades with Widia
2 pneumatic cutting area guards
Pneumatic horizontal vises
Pneumatic vertical vises
Profiled support table
Profile support
Metric ruler
Standard wedge pair
Suction device
TRP (MAGIC) control
LCD display
2 lines x 40 characters
Backlit display
Industrial label printer connection
Single cut execution
100 profile correction values memory
Automatic measurement calculation for angle cuts
20 cutting list memory
50 lines per list
100 joinery frame programs
1500 formulas
