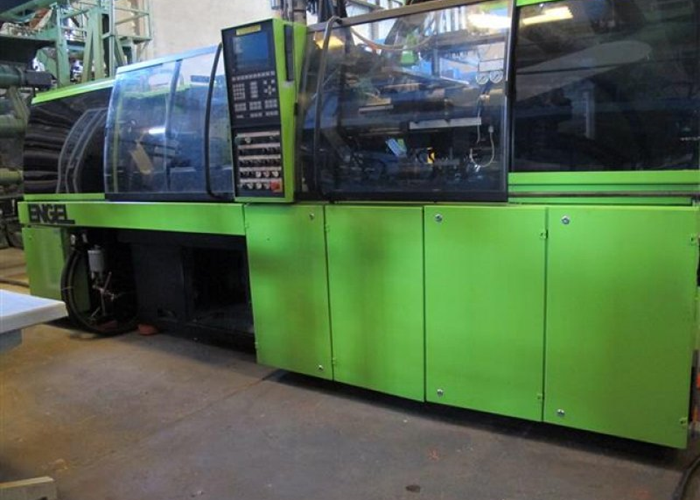

Engel 200H/70 TON Double Color 70 T

Closing Tone 70 ton
Between Columns COLUMN-FREE mm
License Plate Dimensions 660 x 560 mm
Opening Stroke 450 mm
Mold Dimensions Min. 450 mm
Pusher Length 110 mm
Driving Force 2.54 ton

HORIZONTAL
Screw Diameter 25 ømm
Injection Volume 68 cm³
Injection Grammage 61 gr-ps
Injection Pressure 2000 bar
Engine Power 15 KW
Heating Power 6.9 KW
Machine Weight 6300 kg
Machine Width 1160 mm
Machine Size 4400 mm
Machine Height 3000 mm
Oil Tank 175 + 35 lt
Control Unit CC100

VERTICAL
Screw Diameter 18 ømm
Injection Volume 25 cm³
Injection Grammage 22 gr-ps
Injection Pressure 2200 bar
Engine Power 7.5 KW
Heating Power 6 KW
Machine Weight 6300 kg
Machine Width 1160 mm
Machine Size 4400 mm
Machine Height 3000 mm
Oil Tank 175 + 35 lt
Control Unit CC100
