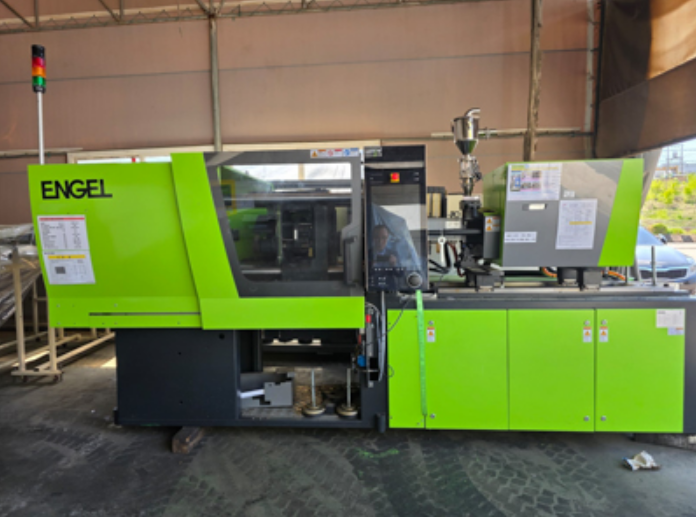

Engel e-mac 50 / 100 PRO 100 T
Ref :
2797306-6-GO
Condition :
Used
Manufacturer :
Engel
Model :
e-mac 50 / 100 PRO
Capacity :
100 T
Year(s) :
2017
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force 1000 kN
Barrel heating capacity 5.1 kW
Daylight between platens max 800 mm
Distance between tie-bars (h x v) 460 x 410 mm
Dry cycle time 1,4/320 sec/mm
Ejector force 22 kN
Ejector stroke 100 mm
Heating zones 4
Injection pressure 2400 bar
Injection rate 84 cm³/s
Injection volume 20.4 cm³
Max mold weight 1 T
Mold opening force 100 kN
Mould height max 450 mm
Mould height min 150 mm
Mould opening stroke max 350 mm
Nozzle stroke / force max. 200 / 20 mm / kN
Plasticizing capacity (PS) 4.2 g/s
Platen size (h x v) 650 x 600 mm
Power: installed max 12 / 14 kW
Screw diameter 18 mm
Screw L/D ratio 24
Screw speed 450 rpm
Screw stroke 80 mm
Shot weight max 19 g
