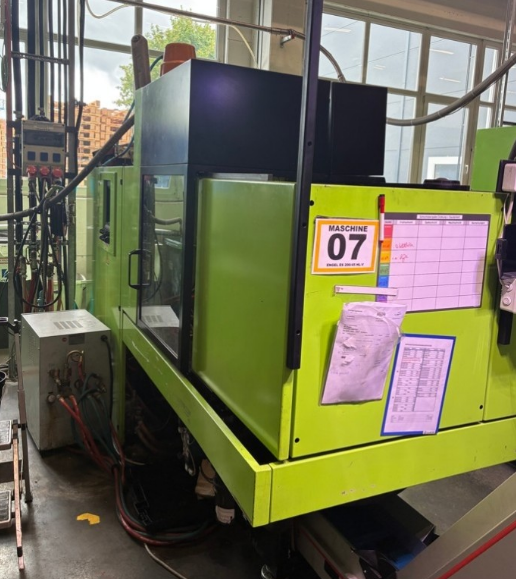

Engel ES 200/45 HL-Victory 45 T

Horizontal injection molding machine

Injection Unit:
- Screw diameter: 35 mm
- Screw length L/D: 17.3D
- Metering stroke: 140 mm
- Screw speed: 20 - 480 rpm
- Injection volume: 135 cm3
- Injection pressure: 1,065 bar
- Increased injection pressure: 1,620 bar
- Heating power: 6.8 kW
- Number of heating zones incl. nozzle: 4

Clamping Unit:
- Maximum clamping force: 450 kN
- Platens: 550 x 330 mm
- Enlarged platens: 550 x 430 mm
- Minimum mold installation height: 180 mm
- Maximum platen spacing: 530 mm
- Opening stroke: 350 mm
- Control: EC 100

Drive:
- Pump drive power: 11 kW
- Weight approx.: 3,300 kg
- Dimensions: 3,300 x 1,200 x 1,800 mm

Current operating hours approx.: 96,899 h

Available from approx. September/October 2026.
The system is still in production.
