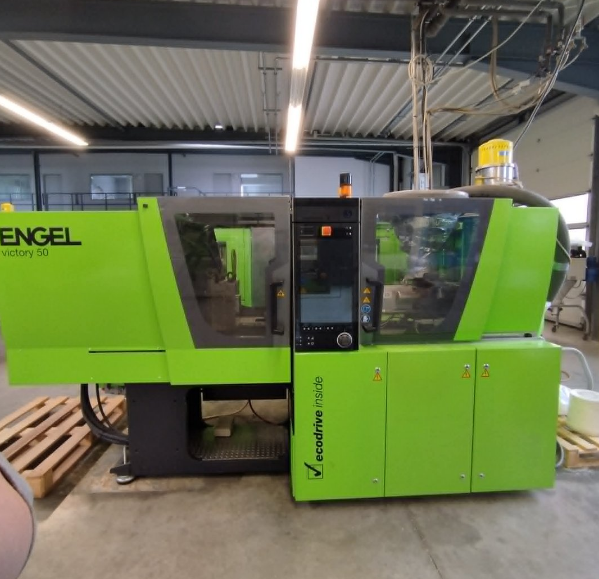

Engel Victory 200-50 spex 50 T

Control unit: CC300
Year of manufacture: 2019
Operating hours: 11,000 h

Technical data, closing side:
Closing force: 500 kN
Plate size h x v: 500 x 450 mm
Minimum installation height: 200 mm
Maximum plate spacing: 600 mm
Opening stroke: 400 mm
Ejector stroke: 100 mm
Ejector force: 40 kN
Moving plate centering diameter: 125 mm
Fixed plate centering diameter: 125 mm

Injection side:
Screw diameter: 25 mm
Stroke volume: 69 cc
Injection pressure: 1820 bar
Screw length: 25 l/d
Screw stroke: 140 mm
Screw speed: 480 rpm
Plasticizing flow rate: 104 g/s PS
Number of heating zones: 4
Nozzle travel: 230 mm

Dimensions & Weight
Machine dimensions L x W x H: 3.4 m x 1.3 m x 1.8 m
Total weight: 2900 kg

Equipment
On-screen text (German)
On-screen text (Polish)
Hydraulic core pull (1x)
Air valve (1x)
Highly wear-resistant and corrosion-resistant plasticizing unit
Interface for ejector plate safety device
Interface for coloring unit
