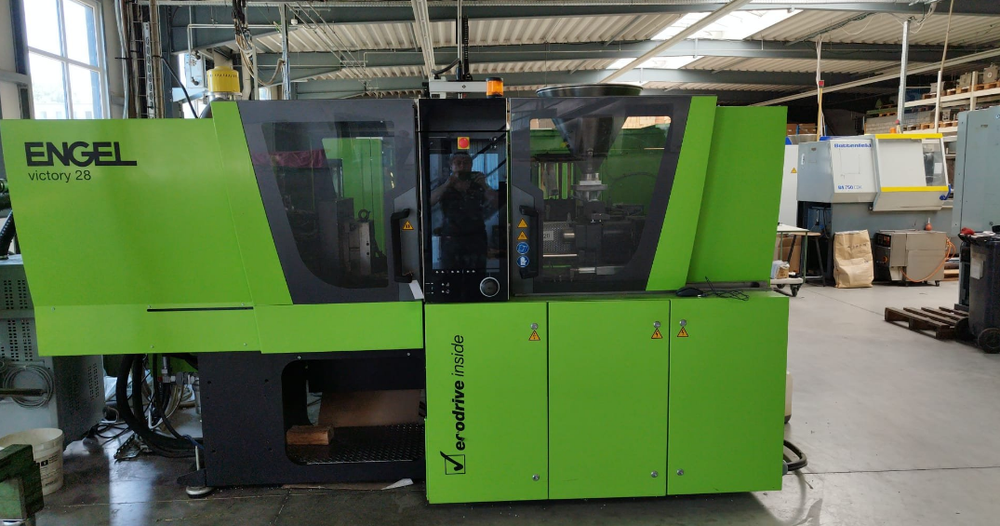

Engel Victory 60-28 Tech 28 T

Controller: CC300
Year of manufacture: 2018
Operating hours: 16,500 h

Technical Data - Clamping Side
Clamping force: 280 kN
Plate size h x v: 500 x 450 mm
Minimum installation height: 150 mm
Maximum plate spacing: 550 mm
Opening stroke: 400 mm
Ejector stroke: 100 mm
Ejector force: 40 kN
Mold weight: 450 kg

Technical Data - Injection Side
Screw diameter: 20 mm
Stroke volume: 31 cc
Injection pressure: 1470 bar
Screw length: 24 l/d
Screw stroke: 100 mm
Screw speed: 360 rpm
Injection flow rate to atmosphere: 78 g/s PS
Number of heating zones: 4
Nozzle travel: 230 mm

Dimensions & Weight
Machine dimensions L x W x H: 3.4 m x 1.3 m x 1.8m
Total weight: 2900kg

Equipment
German screen text
English screen text
Polish screen text
Hydraulic core pull 1x
Air valve 1x
Highly wear-resistant and corrosion-resistant screw
Interface for dyeing unit
