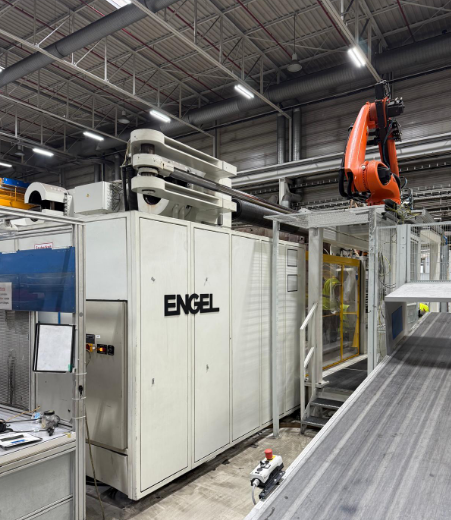

Engel Duo 11050/2300 2300 T

Clamping force: 2300 t
Screw diameter: 135 mm
Type: Horizontal
Drive: Hydraulic

Injection Moulding Machine – ENGEL DUO 11050/2300
Year of manufacture: 2004
Operating hours: 70,029 h

Clamping Unit
Clamping force: 2300 kN
Platen dimensions (H × W): 2900 × 2500 mm
Distance between tie bars (H × V): 2000 × 1600 mm
Min. / Max. mould height: 700 – 1890 mm
Maximum opening stroke: 3800 mm

Injection Unit
Screw diameter: 135 mm
Injection volume: 8870 cm³
Shot weight (PS): 8071 g
Injection pressure: 1600 bar

Additional Equipment and Features
Screw replaced in 2011,
reinforced type – suitable for special materials.
Option for two-component injection (2-shot).
Mould tilting function.
Magnetic platens.
2 hydraulic core pulls.
36 heating zones for the mould.
10 hydraulic cascade zones installed (expandable).
Machine interface languages: English, German.

Dimensions and Weight
Net weight (including control cabinet): approx. 131 t
(machine 113 t + control cabinet 18 t)

Engel 2300 tonnes - 2004. Screw replaced in 2011.
Reinforced screw for special materials.
Can be injected twice. Option with mould tilting.
Magnetic plates.
2 hydraulic cores.
36 heating zones for the mould
10 hydraulic cascades installed in the machine, there are more
Screw diameter 135 mm
Languages in the machine: English, German

Machine without robot , machine in excellent condition
