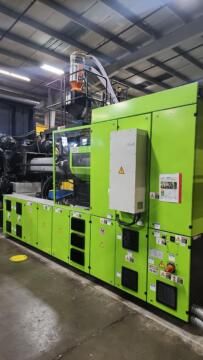

Engel EcoDrive Pico7050/770 US 770 T

Tonnage 770 Ton
Shot Size 168 oz.
Type horizontal
Options & Upgrades Comes with a magnetic platen,
2013 Viper 40 robot
Payload 50.60 lbs.
Stroke X 47.24 Y 74.80 Z 130.71
A&C Axis 6 Vacuum Air Circuits,
Ecodrive Electric Screw - 40-60% Less Energy Consumption
Machine Notes Highly Optioned Machine.

Technical Specifications
Clamp 2-Platen
Tie Bar Distance 43.30 inches x 37.80 inches
Platen Size 59.40 inches x 56.70 inches
Daylight Min 17.70 inches
Daylight Max 80.71 inches 45.27" Maximum Mold Height
Core Pull Sequences Yes 2 on Movable one on Stationary
Types of Controls CC200
Voltage 480
Dimensions 31.67 ft x 8.58 ft x 8.93 ft

Condition
Overall Condition Excellent
Barrel & Screw Excellent
Material Run HDPE
