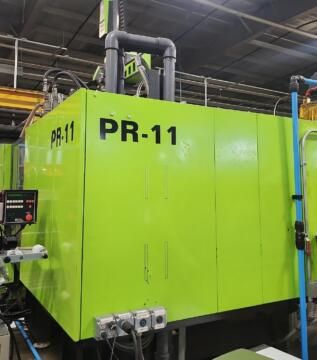

Engel EcoDrive Duo5550/550 US 550 T

Tonnage 550 Ton
Shot Size 111 oz.
Type horizontal
Options & Upgrades Ecodrive Electric Screw Drive,
Comes with a 2013 Viper 20 Robot Payload 37.40 lbs.
Stroke X 27.56 Y 59.06 Z 111.81 C Axis 4 Vacuum Air Circuits
Machine Notes Highly Optioned Machine.

Technical Specifications
Clamp 2-Platen
Tie Bar Distance 35.80 inches x inches 32.70
Platen Size 50.00 inches x 49.60 inches
Daylight Min 13.80 inches
Daylight Max 64.96 inches 35.40" Maximum Mold Height
Core Pull Sequences Yes
Types of Controls CC200
Voltage 480

Condition
Overall Condition Excellent
Barrel & Screw Excellent
Material Run HDPE
