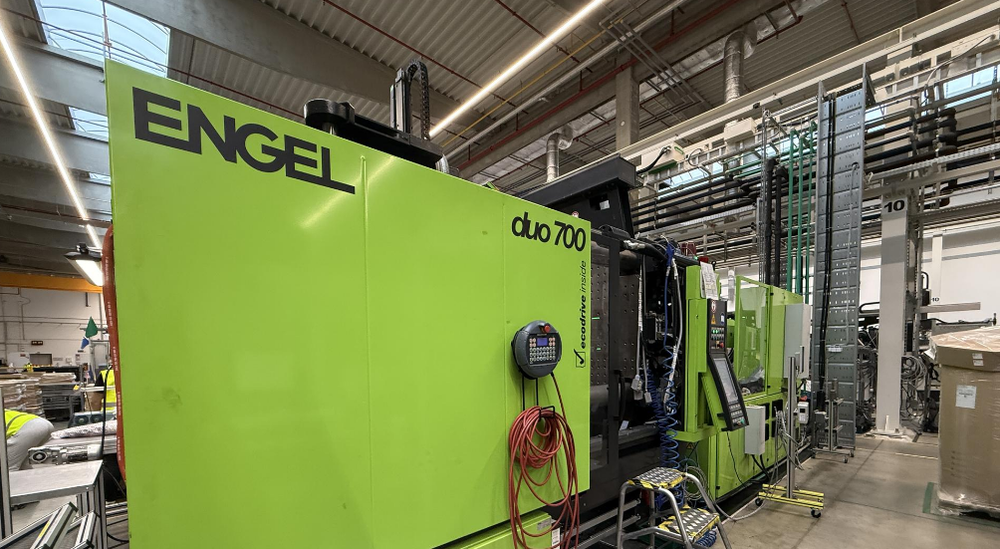

Engel Duo 1800/700 pico 700 T

*M001 — ENGEL DUO 1800 / 700* (2014)

*CLAMPING UNIT*
• Clamping force: 700 T
• Coining: NO
• Max mold weight: x kg
• Max mold weight per plate: 7300 kg
• Size between bars (WxH): 1100x960 mm
• Min mold height: 450 mm
• Max mold height: 950 mm
• Max stroke open: 1850 mm
• Centering ring FIX / MOVE: 160 / 160 mm
• Fast clamping system: NO

*MOLD INTERFACE*
• Heating zones: 16 (16 pin TC, 16 pin PW)
• Water cooling circuits: 8+8
• Hydraulic circuits (cores): 2+2
• Hot runner sliders hydraulic (nozzles): 8
• Hot runner sliders pneumatic: 4

*INJECTION UNIT*
• Screw diameter: 60 mm
• Nozzle face + thread: R20+UNF 7/8"
• Injection unit type: 1800
• Screw stroke: 270 mm
• Max injection capacity: 763.41 cm3
• Max injection pressure: 2360 Bar
• Max injection rate: 710 cm3/s
• Accumulator SW / HW: YES / YES

*ELECTRICAL / ROBOT*
• Mold ejector clamp: YES
• Sockets 400V/16A: 4
• Sockets 400V/32A: 7
• Sockets 400V/63A: 1
• Robot type: Linear
• Quick connector gripper: WGS-QLRD Midi
• Vacuum ports: 4
• Air pressure ports: 6
• User inputs / outputs: 18 / 8
