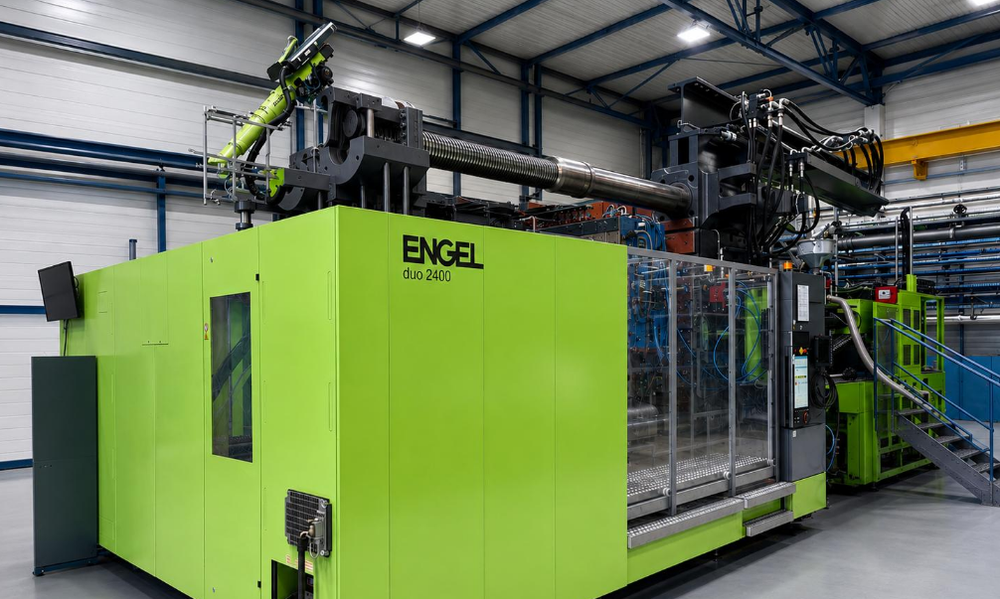

Engel Duo 23060/2400 tech 2400 T

Working hours 9000

CLAMPING UNIT
Clamping force: 24,000 kN
Opening stroke: 3,200 mm
Max. daylight: 4,000 mm
Min. mould height: 800 mm
Max. mould height: 2,000 mm
Tie bar spacing (H × V): 2,020 × 1,620 mm
Platen dimensions (H × V): 2,700 × 2,430 mm
Opening force: 614 kN
Opening force with pressure pad: 1,600 kN
Dry cycle time (Euromap 6): 5.4 s

INJECTION UNIT
Screw diameter: 150 mm
L/D ratio: 25:1
Screw stroke: 680 mm
Shot volume: 12,020 cm³
Theoretical shot weight PS: approx. 10.9 kg
Injection rate: 2,121 cm³/s
Injection pressure (regenerative): 1,601 bar
Maximum injection pressure: 1,900 bar
Screw speed: 90 rpm
Maximum screw speed: 115 rpm
Screw torque: 18,600 Nm
Reduced torque at max. speed: 14,550 Nm
Plasticizing rate (3-zone screw): 235 g/s
Plasticizing rate (barrier screw): 322 g/s

NOZZLE
Nozzle stroke: 1,100 mm
Nozzle contact force: 210 kN

EJECTOR
Ejector stroke: 400 mm
Ejector force forward: 420 kN
Ejector force return: 420 kN

HEATING SYSTEM
Heating zones incl. nozzle: 10
Installed heating power: 97.4 kW

DRIVE UNIT
Installed motor power: 265 kW
Hydraulic oil tank capacity: 1,600 l

COOLING REQUIREMENTS
Cooling capacity: 45.2 kW
Water consumption (32°C inlet): 6.6 m³/h

Cores: 3+3
Heating zones: 160
Cascades: 56
