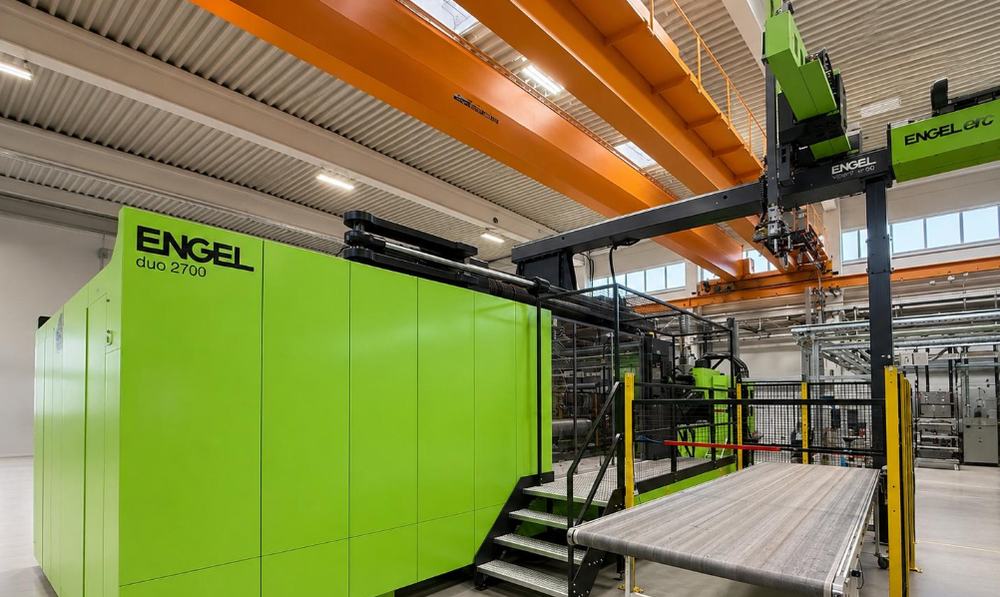

Engel Duo 36060/2700 Tech 2700 T

Working hours 9000

CLAMPING UNIT
Clamping force: 27,000 kN
Opening stroke: 3,300 mm
Max. daylight: 4,100 mm
Min. mould height: 800 mm
Max. mould height: 2,200 mm
Tie bar spacing (H × V): 2,180 × 1,750 mm
Platen dimensions (H × V): 2,970 × 2,640 mm
Opening force: 770 kN
Opening force with pressure pad: 1,600 kN
Dry cycle time (Euromap 6): 5.6 s

INJECTION UNIT
Screw diameter: 190 mm
L/D ratio: 25:1
Screw stroke: 850 mm
Shot volume: 24,100 cm³
Theoretical shot weight PS: approx. 21.9 kg
Injection rate: 2,620 cm³/s
Injection pressure (regenerative): 1,300 bar
Maximum injection pressure: 1,600 bar
Screw speed: 85 rpm
Maximum screw speed: 100 rpm
Screw torque: 24,000 Nm
Reduced torque at max. speed: 20,400 Nm
Plasticizing rate (3-zone screw): 238 g/s
Plasticizing rate (barrier screw): 296 g/s

NOZZLE
Nozzle stroke: 1,300 mm
Nozzle contact force: 210 kN

EJECTOR
Ejector stroke: 400 mm
Ejector force forward: 420 kN
Ejector force return: 420 kN

HEATING SYSTEM
Heating zones incl. nozzle: 12
Installed heating power: 160.9 kW

DRIVE UNIT
Installed motor power: 355 kW
Reload pump motor: 3 kW
Hydraulic oil tank capacity: 3,500 l

COOLING REQUIREMENTS
Cooling capacity: 66.9 kW
Water consumption (32°C inlet): 5.88 m³/h

Options:
Engel VIPER 90 robot
Rectable tie bar (movable)
Hotrunners: 160
cores: 3+3
Cascades: 72
