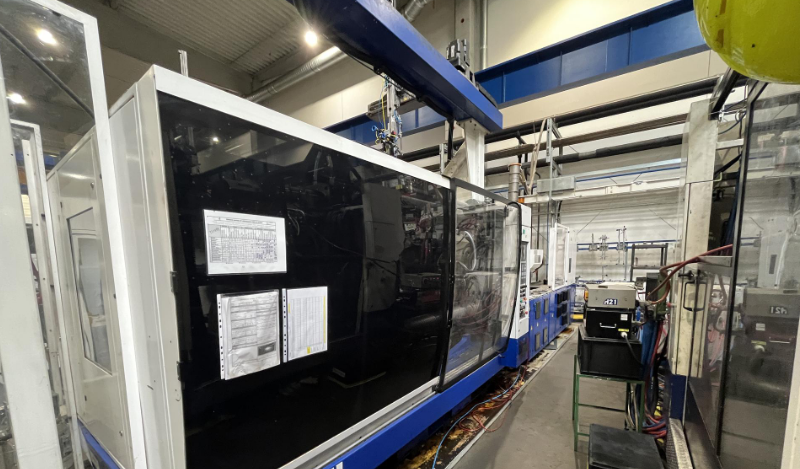

Engel Duo 4550/700 700 T

CLAMPING UNIT
Clamping force: 7000 kN
Opening force (with pressure pads): 510 kN
Opening stroke: 1350 mm
Minimum daylight: 450 mm
Maximum daylight: 1900 mm
Minimum mold height: 450 mm
Maximum mold height: 950 mm
Distance between tie bars (H × V): 1465 × 1360 mm
Mold plate size (H × V): 1025 × 990 mm
Ejector stroke: 250 mm
Ejector force: 63 kN
Dry cycle time (Euromap 6): 3.6 s (Z) / 2.4 s (Stroke)

INJECTION UNIT 1
Screw diameter: 90 mm
Max. shot volume: 3180 cm³
Max. shot weight (PS): 2880 g
Injection pressure: 1470 bar
Injection speed: 100 mm/s
Plasticizing capacity (3-zone screw): 270 g/s
Plasticizing capacity (barrier screw): 308 g/s
Injection flow rate: 465 cm³/s
Heating zones: 7
Installed heating power: 75 kW
Hydraulic pump drive: 100 kW

Engel Linear Robot ERC53/1-E
22 Hotrunner
4 core pullers
PC, ABS material
