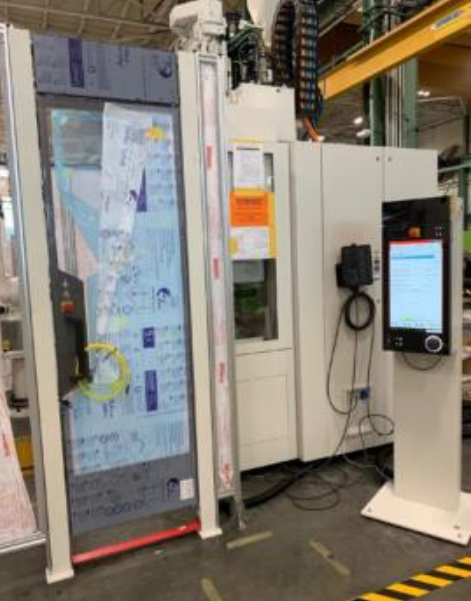

Engel e-insert 50V/50 single US 50 T
AMERICA North (USA-Canada-Mexico)
Tonnage 50 Ton
Shot Size 0.84 oz.
Type horizontal
Options & Upgrades
Includes an Engel KUKA easix KR20 (Cybertech) Clean Room Robot,
Payload: 20 kg,
Additional weight (robot arm): 10 kg,
Working range: 1.810 mm,
Repeat accuracy: +/- 0,04 mm,
Cleanroom package,
Brushless AC servo drives 6 axis,
30% less energy consumption
Machine Notes
Hydraulic package ECODRIVE, FDA approved lubrication system for
food safe lubricants, Executed to ENGEL Medical Standard,
Cleanroom ISO class 7, Executed for PHSR inspection,
mold height increased by 100 mm,
single pneumatic corepull on moving platen,
Air Blow stationary platen, 4 zone mold heating control,
pneumatic valve gate control, 4 fold,
light guard in front of mold area, Hardened screw,
M9 barrel Bi-metallic
(Ni-basis with tungsten carbide WC reinforcement),
pneumatic shut off nozzle, ceramic heater bands,
1st language: English, 2nd language: French
Technical Specifications
Clamp Vertical Single Station
Platen Size 37.0 inches x 15.7 inches
Daylight Min 15.4 inches
Daylight Max 28.3 inches
Core Pull Sequences Yes
Types of Controls CC300
Voltage 480
Condition
Overall Condition Like New
Barrel & Screw Like New
Hours Zero Production Hours
Condition Notes Never put into production
