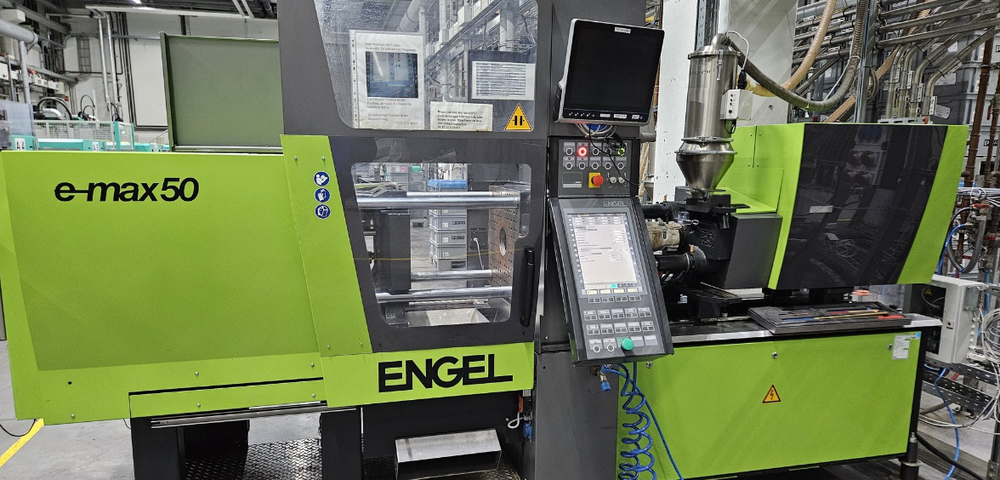

Engel e-max 200-50 50 T

Technical data closing side
Clamping force: 500 kN
Tie bar dimensions hxv: 370 x 320 mm
Platen size hxv: 520 x 470 mm
Minimum installation height: 150 mm
Maximum installation height: 350 mm
Maximum platen spacing: 610 mm
Opening stroke: 260 mm
Ejector stroke: 100 mm
Ejector force: 22 kN
Centering of moving platen D: 125 mm
Centering of fixed platen D: 125 mm
Tool weight: 480 kg

Technical data injection side
Screw diameter: 25 mm
Stroke volume: 59 cc
Injection pressure: 2400 bar
Screw length: 25 l/d
Screw stroke: 120 mm
Screw speed: 400 min
Number of heating zones: 4
Nozzle travel: 230 mm

Dimensions & Weight
Machine dimensions L x W x H: 3.7 m x 1.32 m x 1.8 m
Total weight: 3400 kg

Equipment
German screen text
CEE socket 16A
Air valve 1x
Machine without material hopper
Leveling elements
EUROMAP 67 handling interface
Schuko socket 10A
