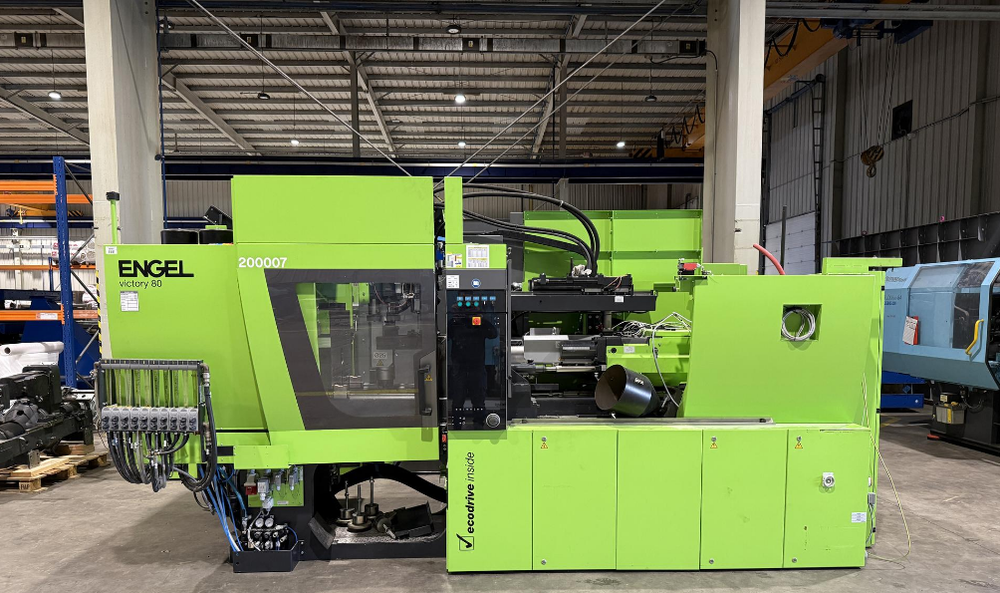

Engel Victory 330H/200V/80 combi 80 T
EUROPE (Central and Eastern)
Machine designation: VC 330H/200V/80 Combi
Clamping unit:
Clamping force: 80 tons
Opening stroke: 458 mm
Ejector stroke: 100 mm
Ejector force: 39.8 kN
Injection unit 1:
Screw diameter: 25 / 30 / 35 / 40 mm
Max. swept volume: 79 / / 154 / 201 cm³
Screw speed max: 400 / 425 / 400 / 320 rpm
Screw speed max current: 425 rpm
Injection rate: 67 / 97 / 132 / 172 cm³/s
Injection rate increased: 50 / 71 / 97 / 127 cm³/s
Specific injection pressure: 2401 / 2181 / 1595 / 1225 bar
Specific injection pressure increased: 0 / 2400 / 2177 / 1670 bar
Nozzle stroke: 500 mm
Nozzle contact pressure: 48.9 kN
Injection unit 2:
Screw diameter: 15 / 18 / 22 / 25 mm
Max. swept volume: 18 / 25 / 99 / 49 cm³
Screw speed max: 480 / 480 / 480 / 480 rpm
Screw speed max current: 480 rpm
Injection rate: 37 / 54 / 149 / 104 cm³/s
Injection rate increased: 28 / 40 / 98 / 77 cm³/s
Specific injection pressure: 2200 / 2200 / 1451 / 1230 bar
Specific injection pressure increased: 0 / 2193 / 2205 / 2300 bar
Nozzle stroke: 380 mm
Nozzle contact pressure: 40.7 kN
Type: Multicomponent
Drive: Hydraulic
