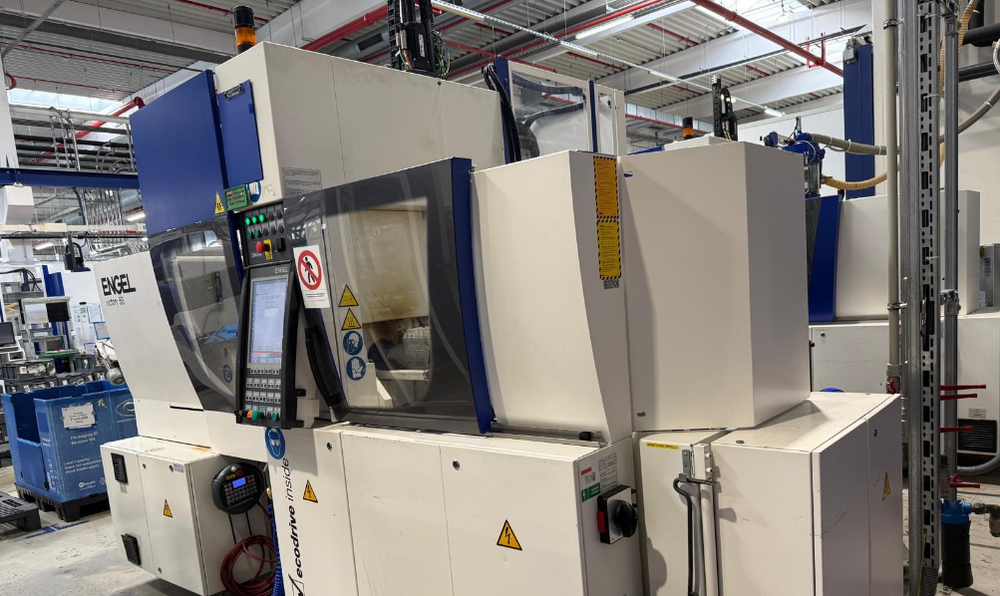

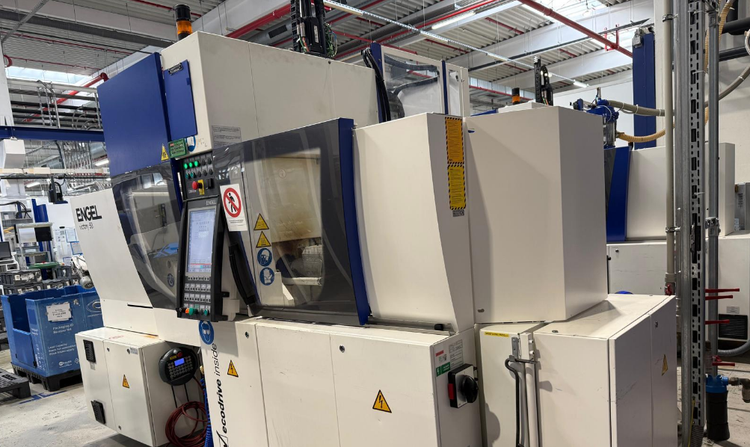

Engel Victory 200/50 tech 50 T

Ref : 2809601-6-AW

Condition : Used

Manufacturer : Engel

Model : Victory 200/50 tech

Capacity : 50 T

Year(s) : 2013

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

Working hours 61455
Clamping force: 500 kN (50 tons)
Opening stroke: 408 mm
Ejector stroke: 100 mm
Ejector force: 39.8 kN

Injection Unit (30 mm screw):
Screw diameter: 30 mm
Max. swept volume: 99 cm3
Max. screw speed: 480 rpm
Injection rate: 144 cm3/s
Increased injection rate: 95 cm3/s
Specific injection pressure: 1451 bar
Increased specific injection pressure: 2205 bar
Nozzle stroke: 230 mm
Nozzle contact force: 28.3 kN

Control panel : CC200
Core pull 2-fold - movable clamping plate
Hotrunners 16 circuits.
Nozzle orifice 12mm
Multi-level conveyor belt,
ENGEL safety guards for robots.
