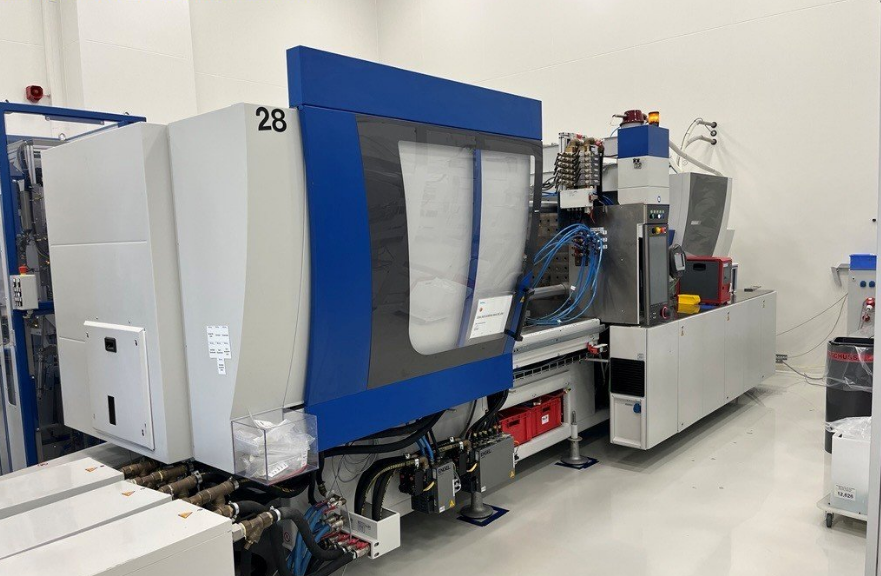

Engel e-motion 440-160 160 T

Steering: CC300
Year of construction: 2018
Operating hours: 33526 h

Technical data Closing side
Closing force: 1600 kN
Holm mass hxv: 520 x 520 mm
Plate size hxv: 760 x 760 mm
Minimum installation height: 250 mm
Maximum installation height: 600 mm
Maximum plate spacing: 1060 mm
Opening method: 460 mm
Ejector stroke: 150 mm
Ejector force: 40 kN
Tool weight: 1250 kg

Technical data spray side
Screw diameter: 40 mm
Engine displacement: 220 cc
Injection pressure: 2000 bear
Snail length: 20 l/d
snail stroke: 175 mm
worm speed: 420 min
Plasticizing current: 33 g/s PS
Injection flow to the open air: 224 g/s PS
Number of heating zones: 4
Nozzle path: 305 mm

Dimensions & Weight
Machine dimensions (L x W x H): 5.9 m x 1.7 m x 2.2 m
Total weight: 8400 kg

equipment
Bildschirmtext German
Hydraulic core pull 1x
Hydraulic core pull unit
Machine without suction conveyor
Pneumatically actuated needle valve nozzle
EUROMAP 63 interface
