1/1
Engel E RC 43/1-EA 300 T
Ref :
2755231-6-CP
Condition :
Used
Manufacturer :
Engel
Model :
E RC 43/1-EA
Capacity :
300 T
Year(s) :
2000
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

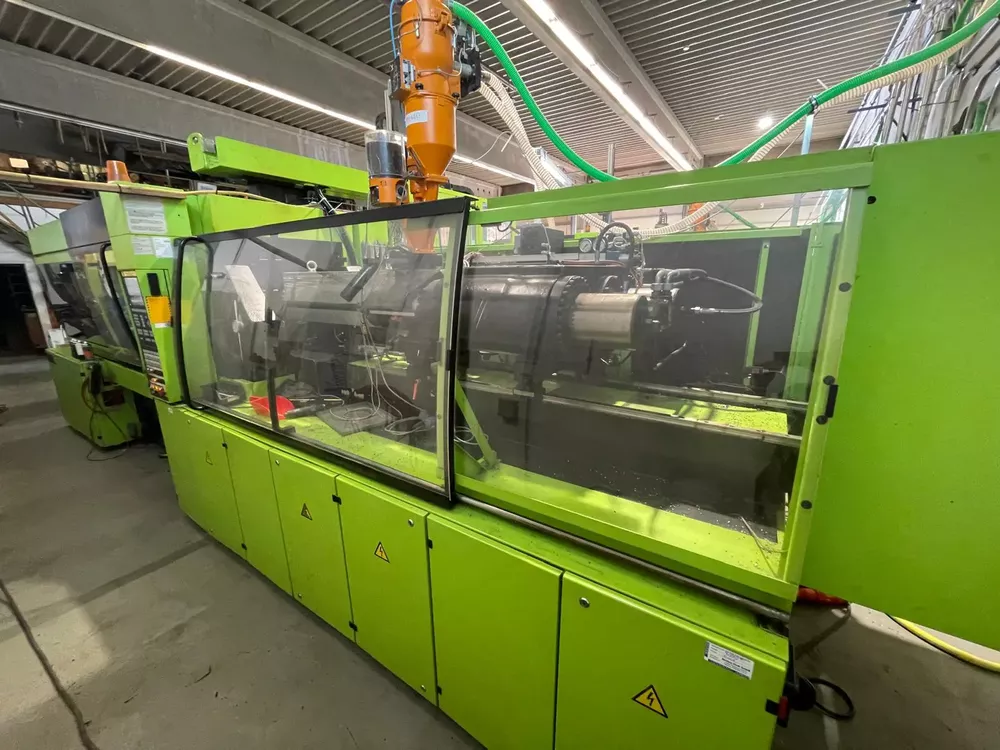

Injection molding machine including robot handling.
Technical specifications:
Operating hours: 69,000
Clamping unit:
Clamping force: 3,000 kN
Layer size: DS 1,050 x 980 mm, AS 1,050 x 900 mm
Min. installation height: 350 mm
Max. platen spacing: 1,200 mm
2x core pulls
2x air valves
Centering ring diameter: 160 mm
Injection unit:
Screw diameter: 70 mm
Max. stroke volume: 1,155 cm³
Spec. injection pressure: 1,779 bar
Temperature rating: up to 500°C
Handling:
X 500 mm
Y 800 mm
Z 1,880 mm
C-axis 0-90° pneumatic
2 suction/gripping circuits
Freely programmable I/O
Conveyor belt 4000x600mm, height-adjustable
Predefined program sequences, sprue separation
Quality part storage
