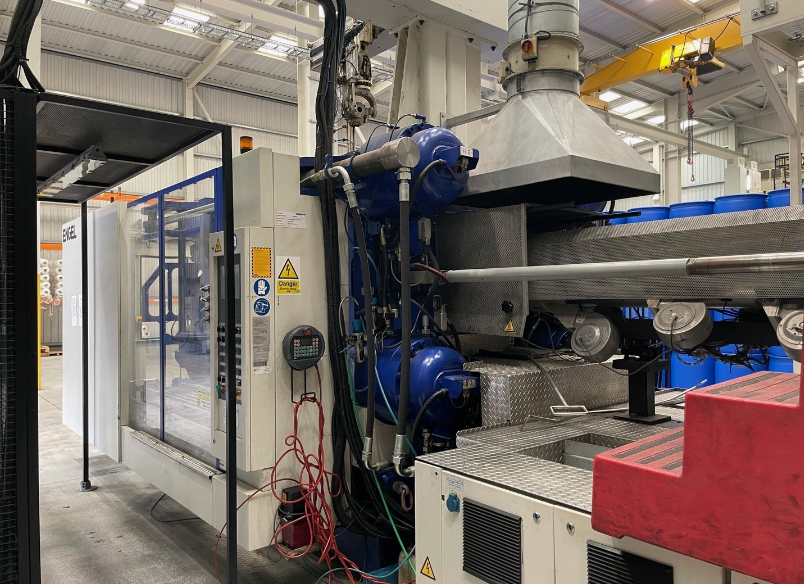

Engel ES 16050-800 DUO 800 T

Steering: CC 200
Year of construction: 2007
Operating hours: 91708 h

Technical data Closing side
Closing force: 8000 kN
Holm mass hxv: 1170 x 1000 mm
Plate size hxv: 1550 x 1520 mm
Minimum installation height: 500 mm
Maximum installation height: 1100 mm
Maximum plate spacing: 2100 mm
Opening method: 1600 mm
Ejector stroke: 300 mm
Ejector force: 180 kN
Centering movable plate D: 200 mm
Centering fixed plate D: 200 mm
Tool weight: 21600 kg

Technical data spray side
Screw diameter: 135 mm
Engine displacement: 8870 cc
Injection pressure: 1640 bear
Snail length: 22 l/d
snail stroke: 620 mm
worm speed: 100 min
Worm torque: 14000 N
Injection flow to the open air: 1245 g/s PS
Number of heating zones: 7
Nozzle path: 950 mm

Dimensions & Weight
Machine dimensions (L x W x H): 11.81 m x 3.2 m x 2.9 m
Total weight: 56000 KG

equipment
Bildschirmtext German
English screentext
CEE socket 16A
CEE socket 16A
CEE socket 16A
Compact Flash drive
Hydraulic core pull 1x
Machine including handling
Machine including protective housing
Machine with water battery
EUROMAP 12 interface
Interface for handling
USB interface
Tool heater 16x
Technical data Handling
Machine type: Linear
Manufacturer: ANGEL
Steering: ERC 64/1-F
Year of construction: 2007
Handling weight: 25 kg
X-axis: 1300 mm
Y-axis: 2200 mm
Z-axis: 4760 mm
