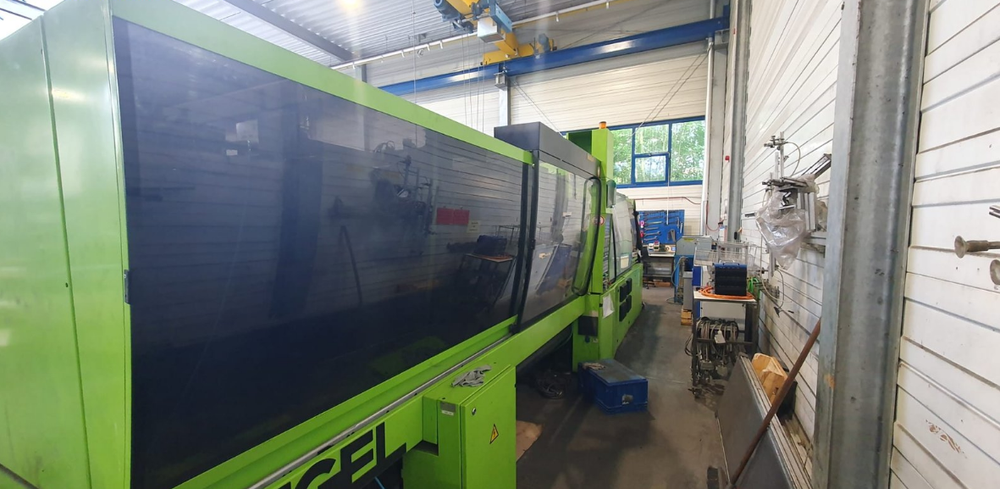

Engel ES 1800-350 HL 350 T

Controller: CC100
Year of manufacture: 2004
Operating hours: 69,000 h

Technical Data - Clamping Side
Clamping force: 3500 kN
Plate size h x v: 1050 x 980 mm
Minimum installation height: 350 mm
Maximum plate spacing: 1300 mm
Opening stroke: 950 mm
Ejector stroke: 250 mm
Ejector force: 83 kN
Mold weight: 2500 kg

Technical Data - Injection Side
Screw diameter: 70 mm
Stroke volume: 1039 cc
Injection pressure: 1441 bar
Screw length: 20 l/d
Screw stroke: 270 mm
Screw speed: 226 rpm
Injection flow rate to atmosphere: 386 g/s PS
Number of heating zones: 5
Nozzle travel: 500 mm

Dimensions & Weight
Machine dimensions L x W x H: 7.98 m x 2.22m x 2.57m
Total weight: 30,750 kg

Equipment
German screen text
2x hydraulic core pull
Machine including conveyor belt
Machine including handling system
Machine including protective enclosure
Machine without material hopper
Leveling elements

Handling system technical data
Machine type: Handling system
Manufacturer: ENGEL
Control system: ER-HLI 81
Year of manufacture: 2004
