Engel ES 200/25V HLS Elast 25 T
Ref :
2803339-6-AS
Condition :
Used
Manufacturer :
Engel
Model :
ES 200/25V HLS Elast
Capacity :
25 T
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

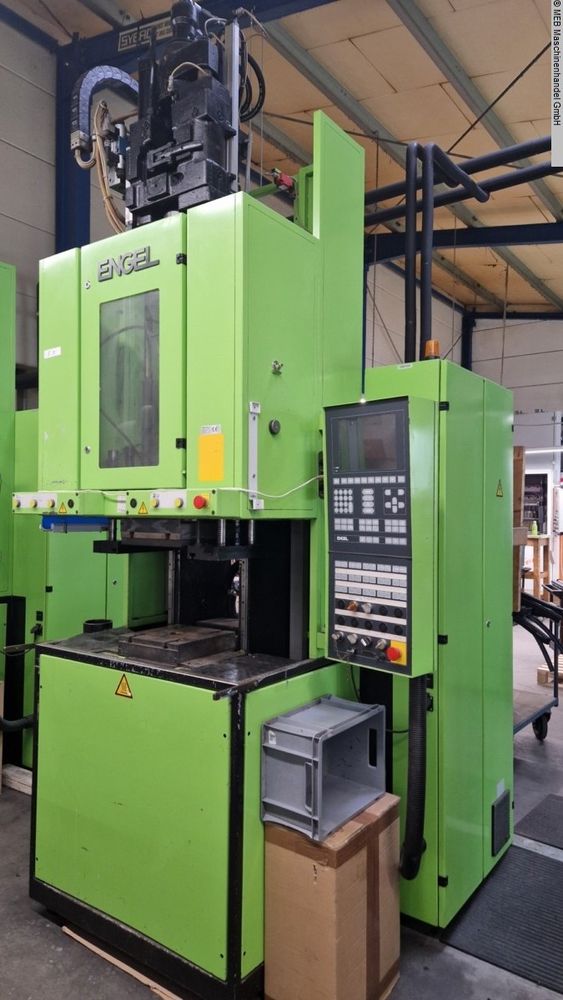

Specification: C-frame injection molding machine
Clamping unit:
- Clamping force: 250 kN
- Heated platen size: 300 x 300 mm
- Platen heating power: 5.3 kW
- Clamping/opening stroke: 330 mm
- Platen spacing with heated platen max.: 380 mm
- Clamping direction: from below
- Side ejector: yes
- Stroke of lateral, hydraulic Ejector: 100 mm
- Ejector stroke/force: 70 mm / 24 kN
Injection unit:
- Increased injection pressure: 1,580 bar
- Maximum injection volume: 134 cm3
- Screw diameter: 35 mm
- Screw length: 17.1D
- Maximum screw speed: 20-480 rpm
- Metering stroke: 140 mm
- Injection: Top-loading
- Voltage: 3 x 400 V, 50 Hz, N, PE
Pump drive power: 11 kW
- Dimensions (L x W x H): 4,900 x 2,400 x 1,900 mm
- Weight (approx.): 2,500 kg
