Engel ES 330/80 VHL Rubber 80 T
Ref :
2803343-6-AS
Condition :
Used
Manufacturer :
Engel
Model :
ES 330/80 VHL Rubber
Capacity :
80 T
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

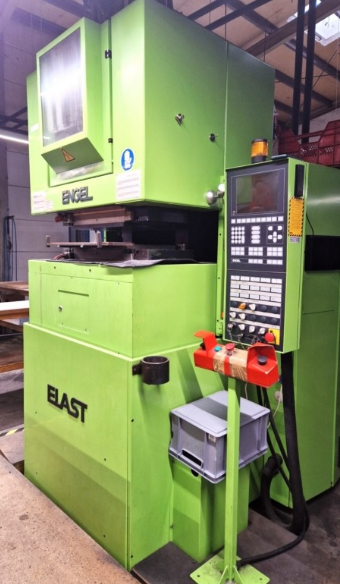

C-Frame Injection Molding Machine - Used
Clamping Unit:
- Clamping Force: 800 kN
- Mold Mounting Surface: 430 x 660 mm
- Clamping/Opening Stroke: 450 mm
- Maximum Mold Mounting Height without Heated Plates: 300 mm
- Maximum Platen Distance without Heated Plates: 750 mm
- Clamping Direction: From Below
- Ejector Stroke: 130 mm
- Ejector Force: 40 kN
Injection Unit:
- Increased Injection Pressure: 2,180 bar
- Maximum Injection Volume: 154 cm3
- Screw Diameter: 35 mm
- Screw Length: 20D
- Maximum Screw Speed: 20–400 rpm
- Metering Stroke: 160 mm
- Injection: from above
- Nozzle stroke: 250 mm
- Voltage: 3 × 400 V, 50 Hz, N, PE
- Pump drive power: 11 kW
- Dimensions L × W × H: 2,030 × 1,480 × 3,960 mm
- Weight approx.: 4,700 kg
