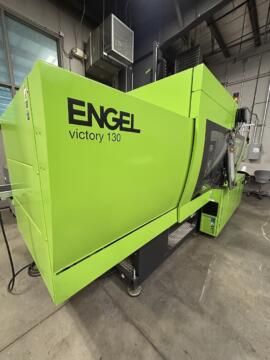

Engel VC 650/130 Hy-Tech US 135 T

Tonnage 135 Ton
Shot Size 10.53 oz.
Model Number VC 650/130 HY-TECH US
Type horizontal
Options & Upgrades Includes a Viper 6 Robot RC300 Integrated,
TAL 15U loader, Temptek CF-3A-21HF air cooled chiller

Machine Notes
Min/Max mold height and Max Daylight increased by 200 mm,
M3 barrel elongated Bi-metallic ,
S8 barrier screw, geometry MBS with shear mixing head,
corrosion resistant barrelhead, ceramic heater bands,
Hydraulic package ECODRIVE, iQ weight control
Software for monitoring melt volume and viscosity variations.
Closed loop control of injected melt volume by
automatic adaptation of injection speed Profile,
switch-over point and holding pressure profile,
hydraulic corepull on moving platen,
pneumatic valve 5/2-ways both platens for air blow,
Program for second blow time for each air valve,
4 zone mold heating control, pneumatic valve gate control,
extended safety gate for integrated robot, two-piece open nozzle
(with removable tip), Quick shutoff valve.

Technical Specifications
Clamp Hybrid Electric
Tie Bar Distance Tiebarless inches x Tiebarless inches
Platen Size 29.13 inches x 26.78 inches
Daylight Min 19.68 inches Minimum Daylight increase 200mm
Daylight Max 39.37 inches Maximum/Minumum Mold Height and
Daylight Increased by 200mm
Core Pull Sequences Yes
Types of Controls CC300 iQ
Voltage 480
Dimensions 16.55 ft x 4.95 ft x 6.56 ft

Condition
Overall Condition Like New
Barrel & Screw Like New
Hours 227
Material Run PS/PP
Condition Notes Like New Condition Used as a Training Machine for
New Employees
