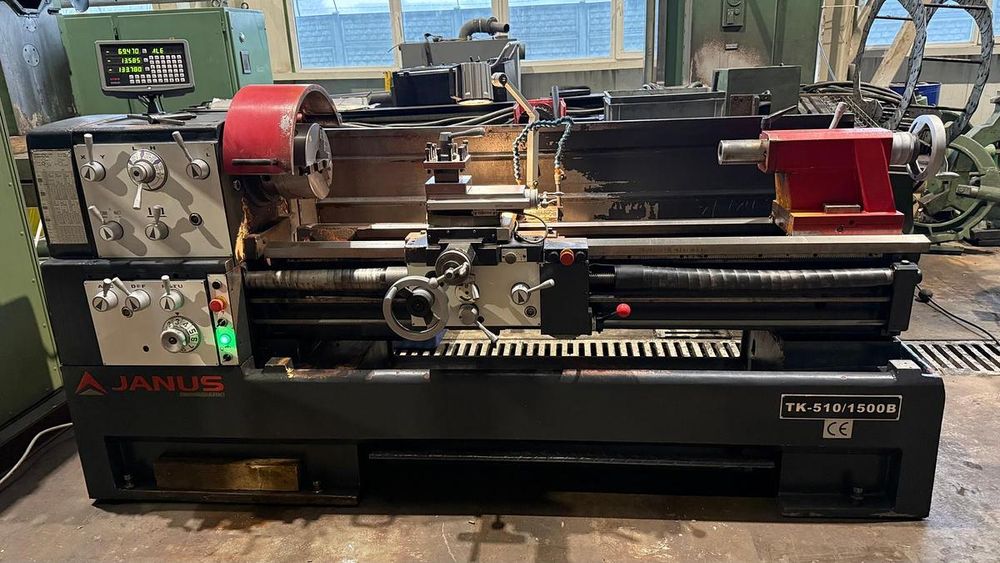

Engine Lathe 1580 rpm Janus TK 510 / 1500B

Max turning diameter over carriage: 300 mm
Max turning diameter over bed: 500 mm
Max turning diameter over bed (gap): 720 mm
Max turning length: 1400 mm
Max workpiece length: 1500 mm
Spindle speed max: 1580 rpm
Spindle bore: 80 mm
Distance spindle axis to bed: 250 mm
Distance spindle axis to tool: 26 mm
Top slide travel: 140 mm
Threading capacity (metric range): 1–192 mm
Threading capacity (inch range): 1/2–24 TPI
Threading capacity (metric fine range): 0.25–48 mm
Threading capacity (pipe range): 1/2–96
Leadscrew pitch: 12 mm
Cross feed rates: 0.04–0.8 mm/rev
Fine cross feed rates: 0.014–0.05 mm/rev
Rough cross feed rates: 0.88–3.2 mm/rev
Rapid traverse X/Z: 4 / 2 m/min
Tailstock quill diameter: 75 mm
Tool shank size: 25 × 25 mm
Quill stroke: 150 mm
Installed power: 10 kVA
Main motor power: 7.5 kW
Coolant pump power: 125 W
Rapid feed motor power: 250 W
Lubrication pump power: 120 W
Control voltage: 110 V
Lighting voltage: 24 V
Power supply: 3×400 V, 50 Hz
Machine dimensions (L×W×H): 3168 × 1037 × 1312 mm
