Erfurt EMP 2800 1000/10 2800 ton

ERFURT EMP 2800 1000/10

Tonnage 2800 ton
Bed left to right 196.8"
Bed front to back 177"
Stroke 44"
Ram adjustment 21.6"
Shut height 64.9"
Four-point link drive
Variable distance 25 mm
Ram stroke 1120 mm
Speed 6–15 SPM
Ram height min 1100 mm
Ram height max 1650 mm
Ram adjustment 550 mm
Bed area 5000 × 2500 mm
Ram cushion stroke max 200 mm
Ram cushion force 1000 kN
Bed cushion stroke max 350 mm
Counteracting force 5000 kN
Ejection force 600 kN

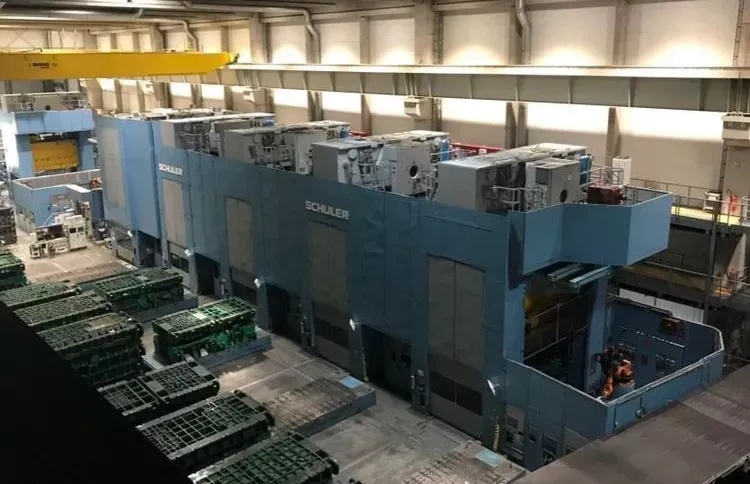

SCHULER EBS 4-1500-4.5-100 (×4 units)
Tonnage 1500 ton
Rated stroke 25 mm
Capacity stroke 6/375 min/kJ
Speed 6–18 SPM
Setting stroke 4 SPM
Drive motor 600–2000/200 min/kW
Frame distance 4900 mm
Ram stroke 1100 mm
Ram adjustment 500 mm
Ram size 4500 × 2500 mm
Ejection stroke 150 mm
Bed size 4500 × 2500 mm
Cushion force 2500 mm
Cushion stroke 250 mm

KUKA DR 120-2 P 2000 Robot
Article number 10010768
Date 07/2011
Weight 1540 kg
Load capacity 120 kg
Range 3500 mm
