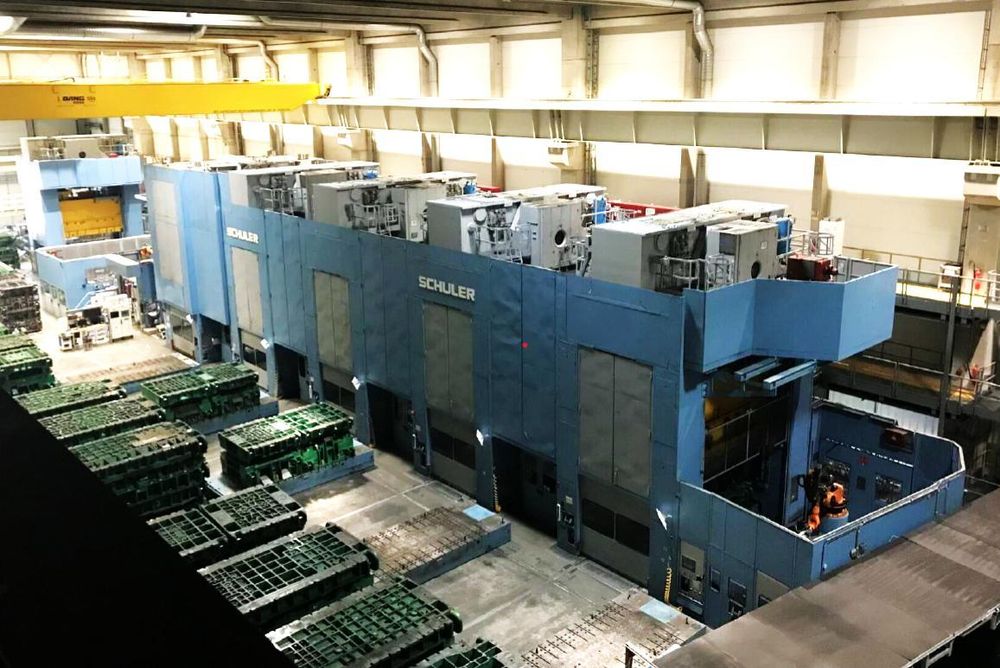

Erfurt Tandem Line 2800 Schuler 2,800 kN

Nominal Press Force 2,800 kN
Ram Stroke 1,120 mm
Stroke Rate 6 – 15 strokes/min
Stroke Rate (setup mode) approx. 4 strokes/min
Die Installation Height 1,100 – 1,650 mm
Ram Adjustment 550 mm
Bolster Size 5,000 × 2,500 mm
Maximum Upper Die Weight 38,000 kg
Slide Cushion Stroke max. 200 mm
Cushion Force in Slide max. 1,000 kN
Hydraulic Cushion Stroke max. 350 mm
Counterholding Force max. 6,000 kN
Ejection Force max. 600 kN
Permissible Operating Pressure 50 / 60 bar
Rated Capacity 1,500 kN
Rated Stroke 25 mm
Working Energy 375 kJ at 6 strokes/min
Stroke Rate 6 – 18 strokes/min
Setup Stroke Rate approx. 4 strokes/min
Main Drive Motor Power 200 kW
Motor Speed 670 – 2,000 rpm
Slide Stroke 1,100 mm
Slide Adjustment 500 mm
Press Bed Size 4,500 × 2,500 mm
Slide Cushion Force 2,500 kN
Cushion Stroke 250 mm
Ejection Force 1,500 kN at 5 bar
Stations 5 mechanical presses in tandem configuration
Application: Deep drawing, forming, trimming, piercing, restrike, final shaping
Equipped with two moving bolsters per press
Suitable for automation systems, destackers, transfer, and robots
