Erfurt PKZZ I 1250 1250 ton
Ref :
2505174-3
Condition :
Used
Manufacturer :
Erfurt
Model :
PKZZ I 1250
Pressure :
1250 ton
Year(s) :
1985
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
20 Mar. 2023

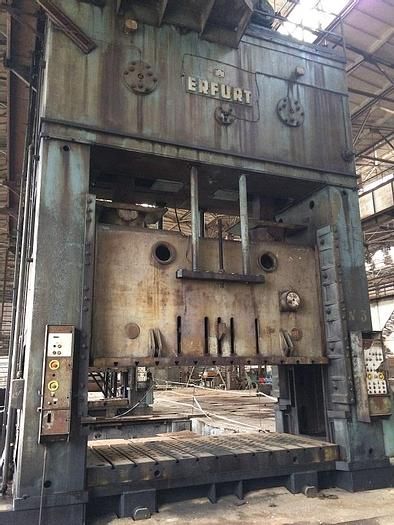

ERFURT PKZZ I 1250
Year 1985
Max. slider force at the distance of 12,5 mm in the lower dead point: 1250 ton
Slider force at the distance of 250 mm in the lower dead point: 350 ton
Number of single strokes per minute: 11
Slider stroke: 630 mm
Slider adjustment: 630 mm
The closed height: 1165 mm
Table pillow:
-Max. stroke: 250 mm
-Stroke adjustment: 250 mm
-Max. holding force: 250 ton
-Max. ejection force: 40 ton
Table dimensions: 4000x1800 mm
Bolster dimensions: 3950x1800 mm
Table gap: 3750x1300 mm
Main motor power: 132 kW
Stay spacing: 4000 mm
Press weight: 215000 kg
