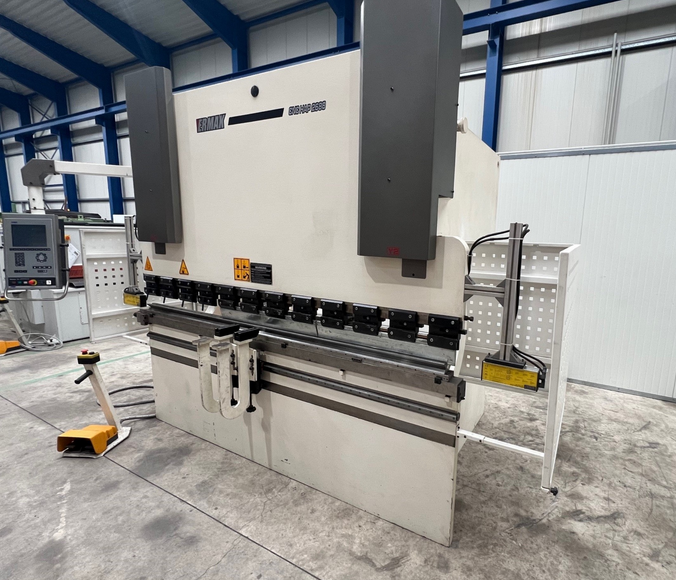

Ermak CNC HAP 2600/80 80 t

Press force: 80 t
Bending length: 2600 mm
Distance between columns: 2050 mm
Column arm: 400 mm
Ram stroke speed: 100 mm/sec
Return speed: 90 mm/sec
Working speed: 10 mm/min
Working stroke: 180 mm
Daylight: 422 mm
Oil volume: 150 l
Table height: 800 mm
Voltage: 400 V
Total power requirement: 7.5 kW
Machine weight: 5950 kg
Machine dimensions: 3750 x 1950 x 2750 mm
CNC control DELEM ER70 with 2D graphics
2D graphic programming mode
High resolution screen
Bending sequence calculation
Tool library
Program library
Swiveling control unit
CNC-controlled axes Y1
CNC-controlled axes Y2
CNC-controlled axis X
CNC-controlled axis R
CNC electro-motor controlled backgauge
Manual crowning
X axis travel: 800 mm
R axis travel: 250 mm
Recirculating ball screws
Manually adjustable stop fingers
Split upper tool
Quick-change clamp
Various tools including closing tool
