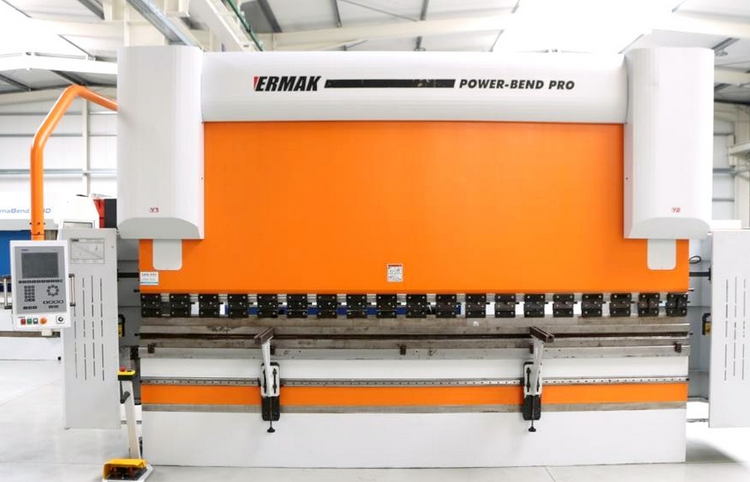

Ermak POWER BEND PRO 4.260 260 t

Pressure: 260 t
Chamfer length: 4100 mm
Distance between columns: 3600 mm
Column arm: 410 mm
Ram stroke speed: 180 mm/sec
Work speed: 10.0 mm/sec
Return speed: 185 mm/sec
Work stroke: 275 mm
Daylight: 550 mm
Table height: 900 mm
Table width: 160 mm
Back stop adjustable max.: 800 mm
Number of working hours: 900 h
Oil volume: 300 ltr.
Voltage: 400 Volt
Total power requirement: 22.0 kW
Weight: 17,000 kg
Range L-W-H: 5150 x 2350 x 3000 mm
Electro-hydraulic press brake
Increased installation height
Increased cylinder stroke
Increased throat depth
DELEM CNC control model "ER70 2D Graphic"
2D graphic programming mode
Screen with high resolution
Bending sequence calculation
Tool and program library
Swiveling control unit, front left
CNC controlled axes: Y1 - Y2 - X - R and CNC crowning
CNC electro-motor controlled backgauge
Traverse path X axis: 800 mm
Traverse path R axis: 250 mm
Traversing speed X axis: 500 mm/s
Traversing speed R axis: 350 mm/s
Recirculating ball screws
2x manually adjustable stop fingers
Split ROLLERI "PS 135" roe deer foot top tool
Crowning device in tool holder
1x universal reversible die block
Die dimensions: 160 x 160 mm
V opening: 100, 70, 50, 35 mm
V opening 100, 70 mm with infeed rollers
Rear safety device: Light barrier
BOSCH/HOERBIGER hydraulic components
SIEMENS electrical components
FIESSLER AKAS laser safety device in front
2x front support arms with sliding system (HIWIN slide bearing)
1x free-moving double foot control
CE mark / declaration of conformity
Operating instructions incl. switching
