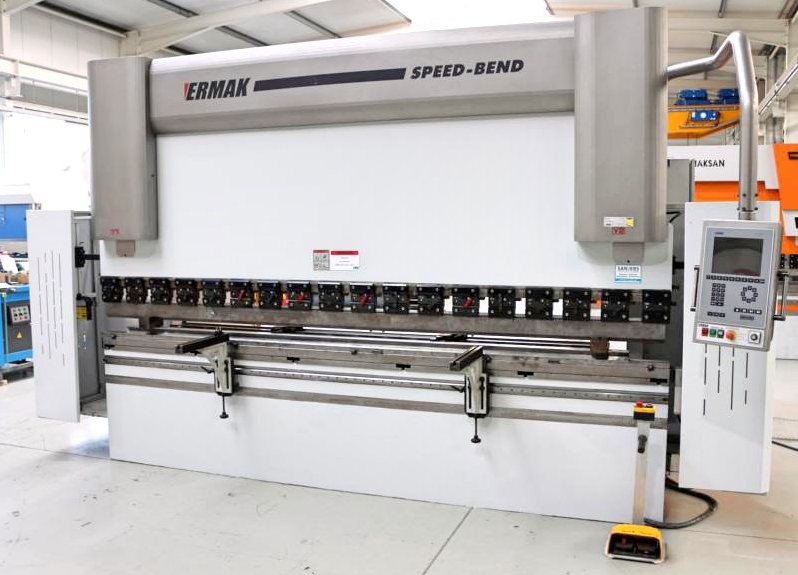

Ermak SPEED BEND 37.175 175 t

Press force: 175 t
Bending length: 3760 mm
Distance between columns: 3250 mm
Throat depth: 410 mm
Ram stroke: 275 mm
Daylight: 550 mm
Ram approach speed: 180 mm/s
Working speed: 10 mm/s
Return speed: 160 mm/s
Table height: 900 mm
Table width: 160 mm
Oil tank capacity: 300 l
Total power requirement: 15.0 kW
Operating voltage: 400 V
Machine weight: 10070 kg
Machine dimensions (L x W x H): 4900 x 2150 x 2800 mm

CNC electro-hydraulic press brake
CNC control DELEM DA 56
Swiveling control panel
CNC controlled axes Y1
CNC controlled axes Y2
CNC controlled axis X
CNC controlled axis R
CNC controlled axis C crowning
CNC motorized backgauge X-axis
Backgauge travel X-axis: 800 mm
Ball screw backgauge drive
Manually adjustable stop fingers
CNC motorized backgauge height adjustment R-axis
Backgauge travel R-axis: 250 mm
CNC motorized under-table crowning
Split upper tool system A
Quick-change upper tool clamping
Additional crowning device in upper tool holder
Split 4V universal bottom die
Additional bending tools
Hydraulic components BOSCH HOERBIGER
Electrical system SIEMENS
Rear safety light barrier
Front laser safety system
Front sliding support arms
T-slot support arms
Tilting cam support arms
Freely movable double foot pedal
Operating instructions
