Erste Maschinen Fabrik AUERBACH FBE 1500 4000 rpm stepless

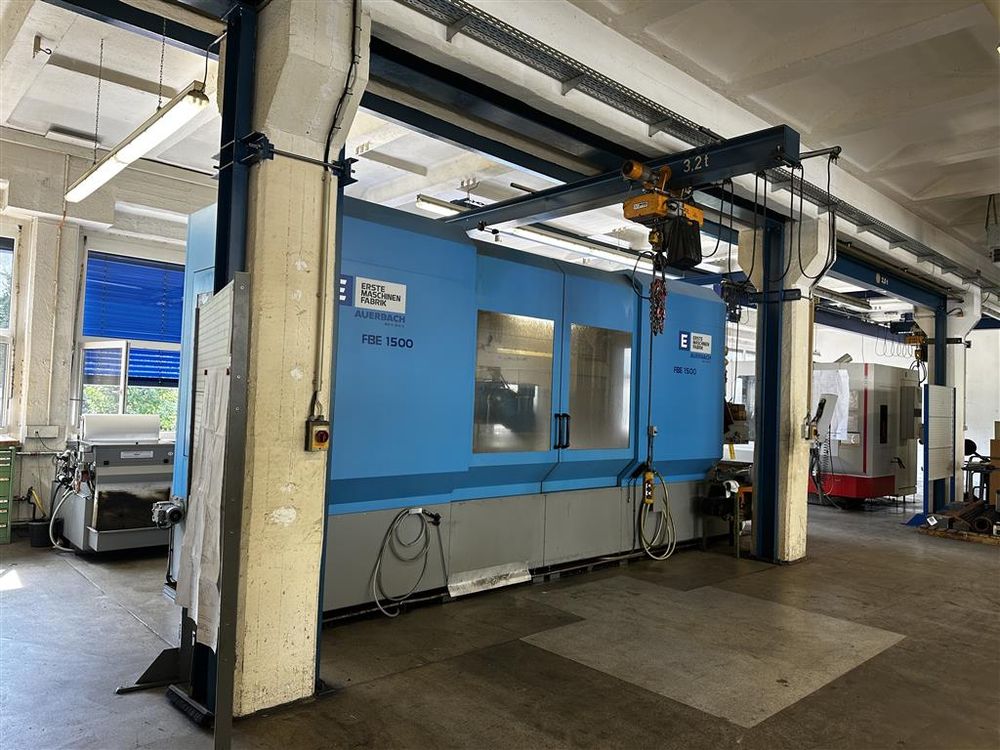

ERSTE MASCHINENFABRIK AUERBACH FBE 1500
Year: 2004

X-travel: 1500 mm
Y-travel: 1000 mm
Z-travel: 1000 mm

Control for program: TNC 530
Spindle hours: unknown
Milling head speed range 1: 30 to 930 rpm
Milling head speed range 2: 930 to 4000 rpm stepless
Tool taper horizontal/vertical: SK 50 (DIN 69871/DIN 69872 Form A)
Max. torque on spindle: 1000 Nm
Spindle head swivel left-right: 90°
Feed rate: 1 - 6000 mm/min
Feed power: 30 kN
Rapid traverse: 15 m/min
Number of tools: 1
Table clamping surface (L x W): 1600 x 800 mm
Table load capacity: 40 kN
Voltage: 400 V / 50 Hz
Total power requirement: 42 kW
Weight approx.: 15.2 t
Machine dimensions (L x W x H): 3.1 x 4.7 x 2.6 m
Cooling filter dimensions: 1.9 x 1.6 x 1.4 m
Space requirement approx. (L x W x H): approx. 38.5 m²
Compressed air: 6.3 bar
Applications: milling, drilling, tapping, boring
Direct coded length measuring systems
Flat guideways on 3 axes
CTS and external cooling
Milling head position controlled +/-90°
Milling spindle nominal drive power: 22 kW
Integrated hydraulic power unit up to 100 bar operating pressure
Coolant unit with filtration and high-pressure pump 60 bar internal cooling
Nominal delivery 20 l/min
Low-pressure pump 4 bar external cooling
Spray gun included
Hinged belt chip conveyor DGS, type SSF 600 P50
Measuring probe SK40 included
Reference tool SK40 included
Milling head SEMPUCO included
