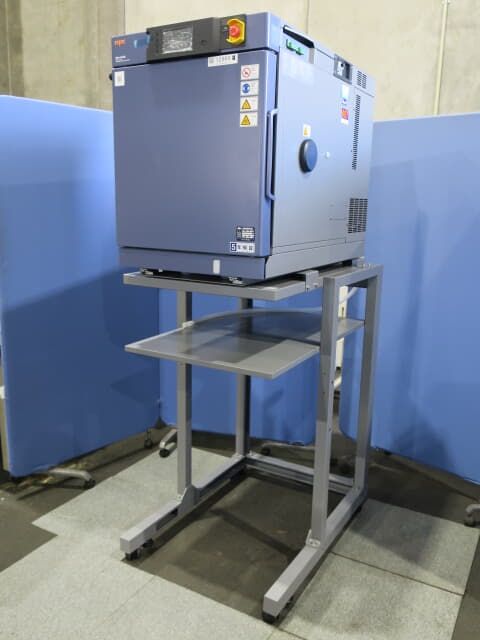

Espec SH-642 Compact Environmental Test Chamber

Temperature Range: -40°C to +150°C
Shelves: 2
Humidity Range: 30-95%RH
Cable Ports: Two φ50mm Ports
(One on the Right Side, One on the Left Side)
Interior Dimensions: W400 x H400 x D400mm (excluding protrusions)
Casters: H-Type Stand (W670 x D925 x H1130mm)
Exterior Dimensions: W600 x D950 x H730mm
(Main Unit Only)
Communication: ETHERNET
Weight: Approximately 130kg (Main Unit Only)
Power Supply: AC100V 1 Phase 50/60Hz MAX. 17.5A
Programming Function: Yes
Operating Time: Approximately 30,250 hours Emergency Stop Button

[Product Description]
This SH-642 is an Espec-manufactured constant temperature and
humidity chamber.
The temperature setting range is -40 to 150°C, and the humidity function
can be set between 30 and 95%RH.
Programmable operation is possible.
It is 100V, but the maximum current is 17.5A,
so please check your power supply equipment before purchasing.

[Device Status]
Instruction manual included
*A power cable is included, but a power plug is not.
*Two types are available: C-stand (stand height approximately 130mm) and
H-stand (stand height approximately 1130mm).
The H-stand can accommodate an environmental test chamber mounted
on a C-stand.
We also offer a two-unit set.
*We can also offer the main unit without the stand.
Please feel free to contact us for more information.
*We have multiple units in stock.
