Espec SH-642 Small Environmental Tester

Specifications
Year of manufacture: 2022
Observation window: None
Temperature range: -40 to +150°C
Shelf: 1
Humidity range: 30 to 95%rh
Cable holes: φ50mm x 2 (1 on the right side, 1 on the left side)
Internal dimensions: W400 x H400 x D400mm (excluding protrusions)

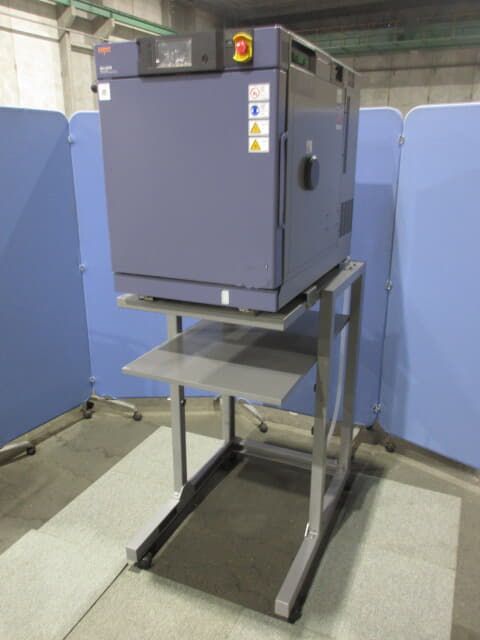

Casters: Dedicated H-frame with casters (W670 x D925 x H1130mm)
External dimensions: W600 x D950 x H730mm (main unit only)
Communication function: ETHERNET
Weight: Approx. 130kg (main unit only)
Recorder: None
Power supply: AC100V 1φ 50/60Hz MAX.17.5A
Programming function: Yes
Operating hours: Approx. 20,000 hours

Product Description
This SH-642 is a constant temperature and humidity chamber manufactured by ESPEC.
The temperature setting range is -40 to 150°C, and the humidity function
can be set between 30 and 95% RH.
Programmable operation is possible.
Although it is a 100V specification, the maximum current is 17.5A, so please check your power supply equipment beforehand.

Equipment Status
Instruction manual included
*Power cable is included, but the power plug is not.
*Two types are available: C-frame specification
(frame height approximately 130mm)
and H-frame specification (frame height approximately 1130mm).
An environmental tester mounted on a C-frame can be stored under the H-frame.
