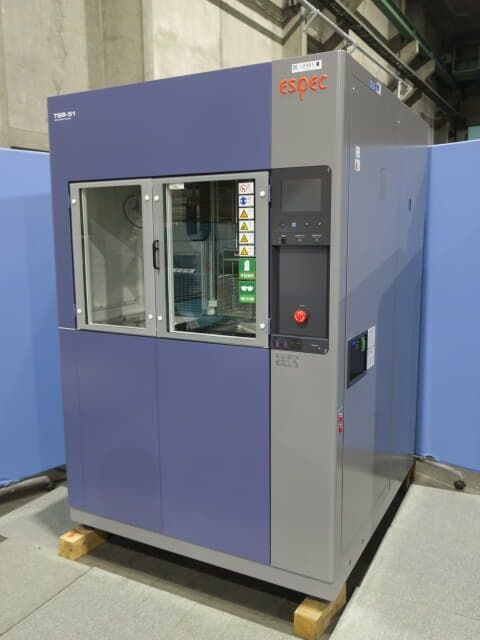

Espec TSB-51 Liquid Bath Thermal Shock Chamber

Power Supply: AC200V 3-phase 50/60Hz
Max. 43A
Condensation Method: Air-Cooled
Operating Time: Approximately 1,400 hours
Method: Two-bath system with movable specimen baskets
Shelf (Specimen Basket): 1
High-Temperature Exposure Range: 70-200°C
Cable Hole: None
Low-Temperature Exposure Range: -65-0°C
Casters: Yes
Room-Temperature Exposure: Yes
Communication Function: RS-485
Humidity Range: None
Recorder: None
Test Area: Specimen Basket Dimensions: W150 x H150 x D200 mm
Load Capacity: 2.0 kg
Other: Emergency Stop Button
External Dimensions: W1200 x H1790 x D1350 mm (excluding protrusions)
Required Equipment: Galden Liquid Capacity: 22-50 L
Weight Approximately 790 kg

[Product Description]
This TSB-51 is an Espec liquid bath thermal shock chamber.
The high temperature exposure range can be set from 70 to +200°C,
and the low temperature exposure range can be set from -65°C to 0°C.
Liquid bath thermal shock testing applies higher thermal stress than
air bath testing, resulting in faster test results.

[Device Status]
Instruction manual included
*Power plug not included.
*Galden fluid not included.
*Power will only be checked before shipping, and the unit will be shipped in
its current condition. (Note: Operation is checked upon arrival.)
