ESR

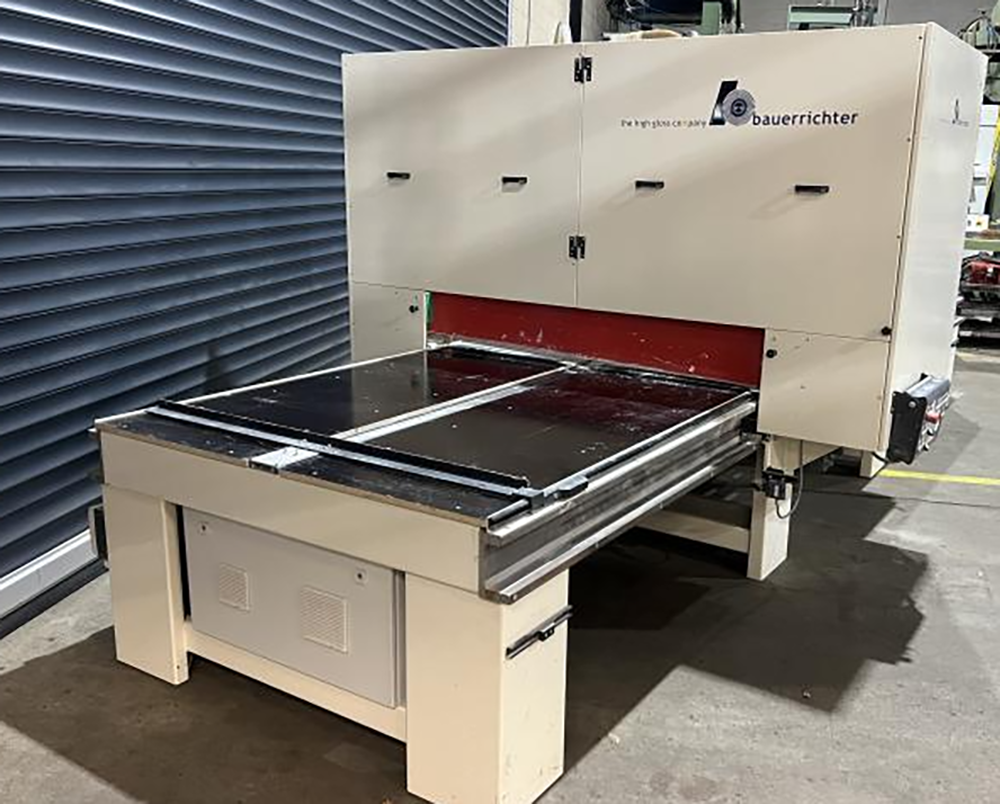

Bauerrichter High-gloss polishing machine / buffing machine
Polishing machine with travelling upper part (successor model to Bauerrichter SL 1)
Working area approx. 1350 x 3200 mm
Passage height max. approx. 100 mm

1x polishing roller, inclined, with oscillation
1x polishing unit for polishing flat workpieces with 7 oscillating and rotating foam pads
Polishing ring diameter: ø 400 mm
Height and oscillation speed infinitely adjustable
Quick clamping system for workpieces
Infinitely variable feed rate (frequency-controlled),
Siemens control system

Functional principle:
The Bauerrichter type ESR high-gloss polishing machine is a surface polishing machine in
which the workpieces are clamped onto a work table and polished on the top side by the automatically travelling unit.
In this machine, the polishing agent is applied / sprayed on by hand before the automatic process starts.
The polishing tools used are folded polishing rings or wave polishing rings, which are arranged next to each other on a spindle to form a roller.

Total connection approx. 16 kW
Dimensions approx. 5600 x 2400 x 2100 mm (LxWxH)
Weight approx. 3000 kg
