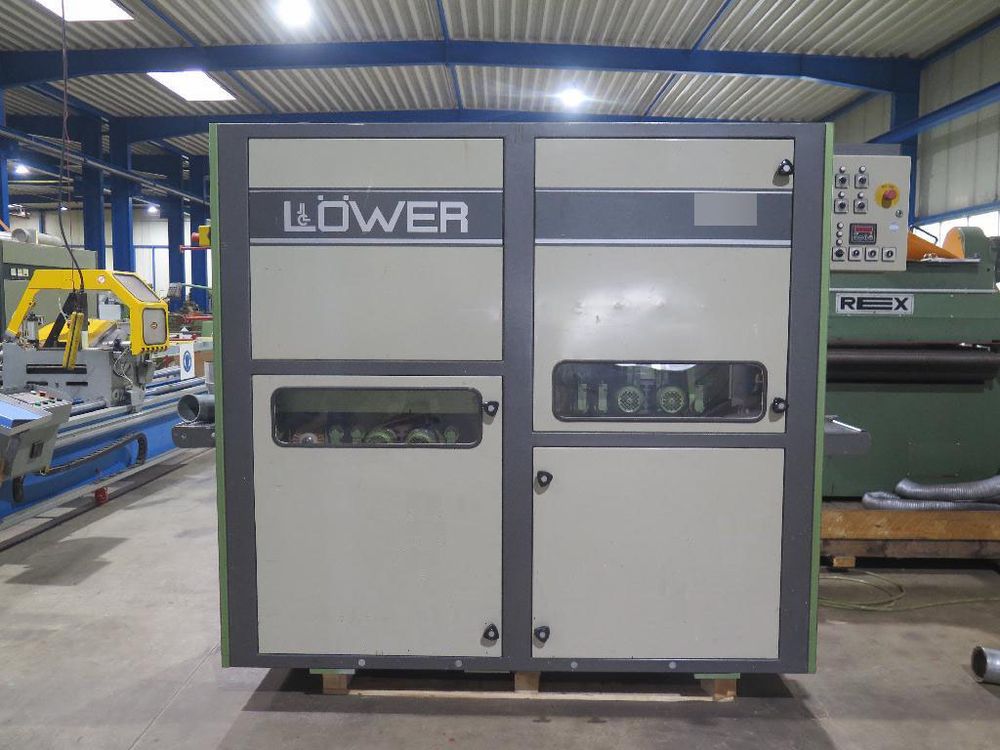

Lower DSM 3000

Sanding machine
Double side sanding machine
Sanding pad and brush from top
Sanding pad and brush from below
Sanding width: 290 mm
Brush length: 290 mm
Sanding thickness: 2 – 200 mm
motoric height adjustment with digital display
Shortest workpiece length: 320 mm
Oscillating sanding belts
CERMET sanding pad, harder than steel or ceramic
Workpiece transport via conveyor belts
Sanding belt width: 300 mm x sanding belt length: 1800 mm
Sanding motor: 2 x 7.5 kW
Brush motor: 2 x 0.37 kW
Feed speeds: 6 / 11 / 16 m/min.
Feed motor: 0.75 kW
Height adjustment: 0.37 kW
Electrical equipment: VDE (German Electrical Engineering Association)
Sanding belt speed: 1300 m/min.
Brush diameter 120 mm
Working height – table height 850 mm
Extraction connection diameter 2 x 140 mm, 2 x 110 mm
Air requirement: 2515 m³/h
Minimum air speed at the machine connection: 20 m/s
Complete with suction pipes for dust extraction
Including 16 new sanding belts (grit 100) and 12 used sanding belts (grit 100)
Low-noise operation thanks to special insulation of doors and housing parts
Safety and protective devices in accordance with CE regulations
Machine is in very good condition and ready for immediate use.
Machine dimensions: Length 2550 mm x Width 1020 mm x Height 1890 mm
Weight: 1600 kg
