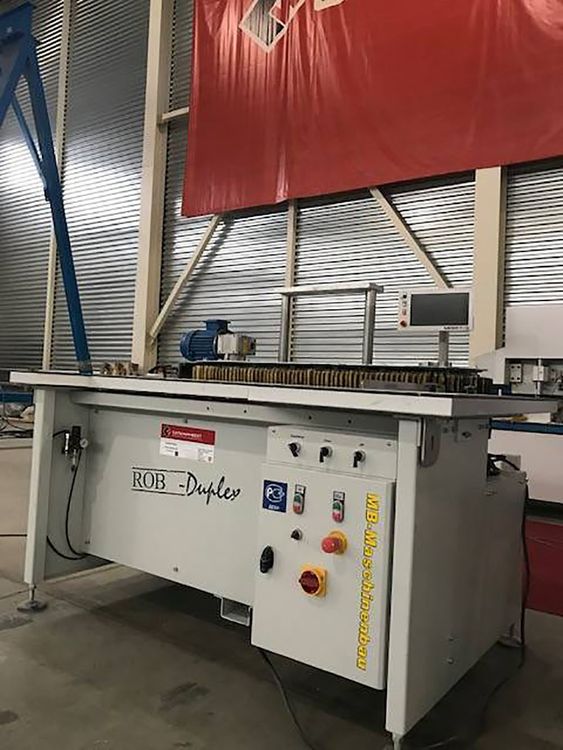

MB ROBА DUPLEX

Machine composition:
Electric-welded machine frame
An air-cushioned work table to protect the surface of the workpiece from scratches, powered by an air compressor.
The dimensions of the work table are 780x2000 mm
Height from floor to table 900 mm
Drive motor 0.75 kW
Sanding belt width 2x100 mm
Sanding belt length 1100 mm
Sanding belt speed 60...230 m/min stepless adjustment
Aspiration connection Ø100 mm
Tilt table 0...10 degrees
Air cushion on the desktop
Electrical control cabinet, IP 54 protection
Frequency converter

Power consumption 1.5 kW
Power supply 400 V, 50 Hz, 3 phases
The machine is manufactured according to CE standards
Machine length is 2000 mm
Machine width: 1160 mm
Machine height is 1200 mm
Machine weight is 450 kg

The machine is equipped with a brush sanding belt for final and intermediate sanding of straight edges of various parts.
The work table is equipped with adjustable side stops.
The horizontal tilt is approximately 10°.

Two sanding belts, each 100 mm high, have 138+138 brush sanding segments that are easily installed and removed from the sanding belt.
Each set of sanding segments can have different grain sizes, for example, for preliminary and intermediate sanding of varnish.
The sanding device is pneumatically raised and lowered, bringing one or another sanding belt into the working area.
Automatic oscillation of the sanding belt achieves the best results on the upper and lower edges of the part.
Sanding segments of different lengths of 30/45/60 mm can be installed (the machine includes a basic set of sanding segments in accordance with customer requirements).
