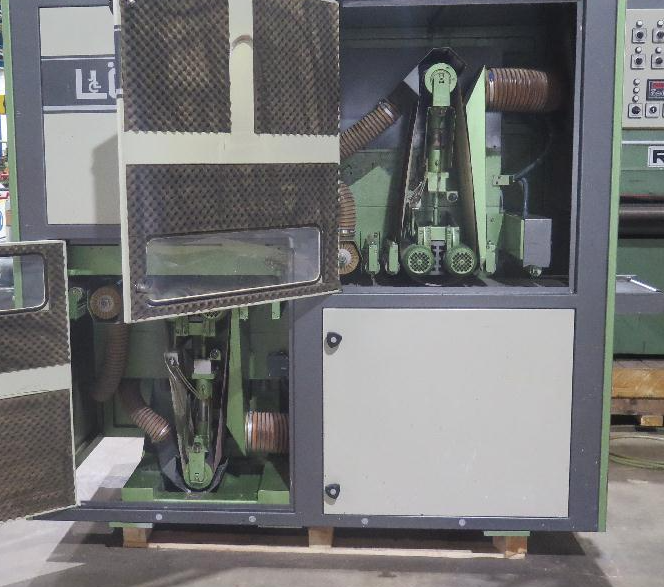

Lower DSM 3000

Double-sided sanding machine / Top/bottom sanding machine
Working width: 290 mm
Sanding thickness: 2–200 mm
Minimum workpiece length: approx. 320 mm

Equipped with:
1x top sanding unit, 7.5 kW
1x top brushing unit, 0.37 kW
1x bottom sanding unit, 7.5 kW
1x bottom brushing unit, 0.37 kW
Sanding belt dimensions: 300 x 1800 mm

Low-noise operation thanks to special insulation of doors and housing components
Safety and protective devices in accordance with CE regulations
Electric height adjustment with digital display, 0.37 kW
Adjustable feed rate, 6/11/16 m/min.
Workpiece transport via conveyor belts
Compressed air: 6–8 bar
Dimensions approx. 2700 x 1100 x 1900 mm
Weight approx. 1600 kg
Complete with pipes for dust extraction distribution
Includes various K 100 sanding belts
