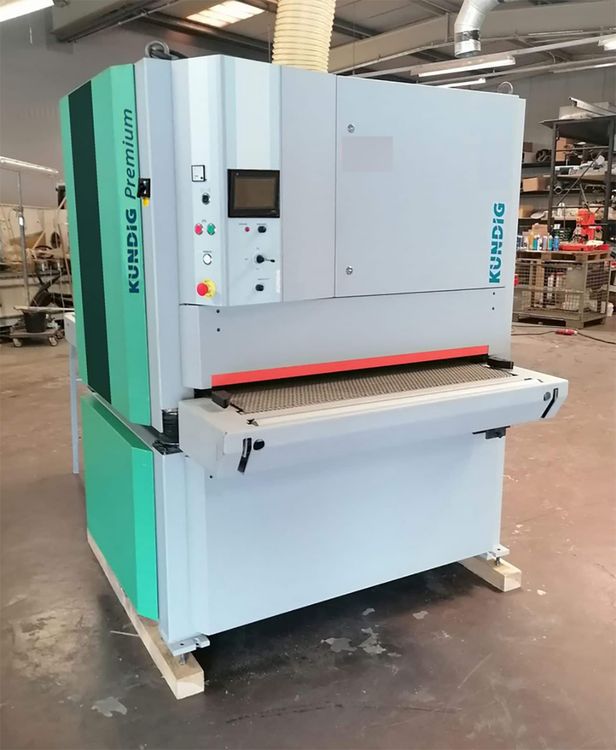

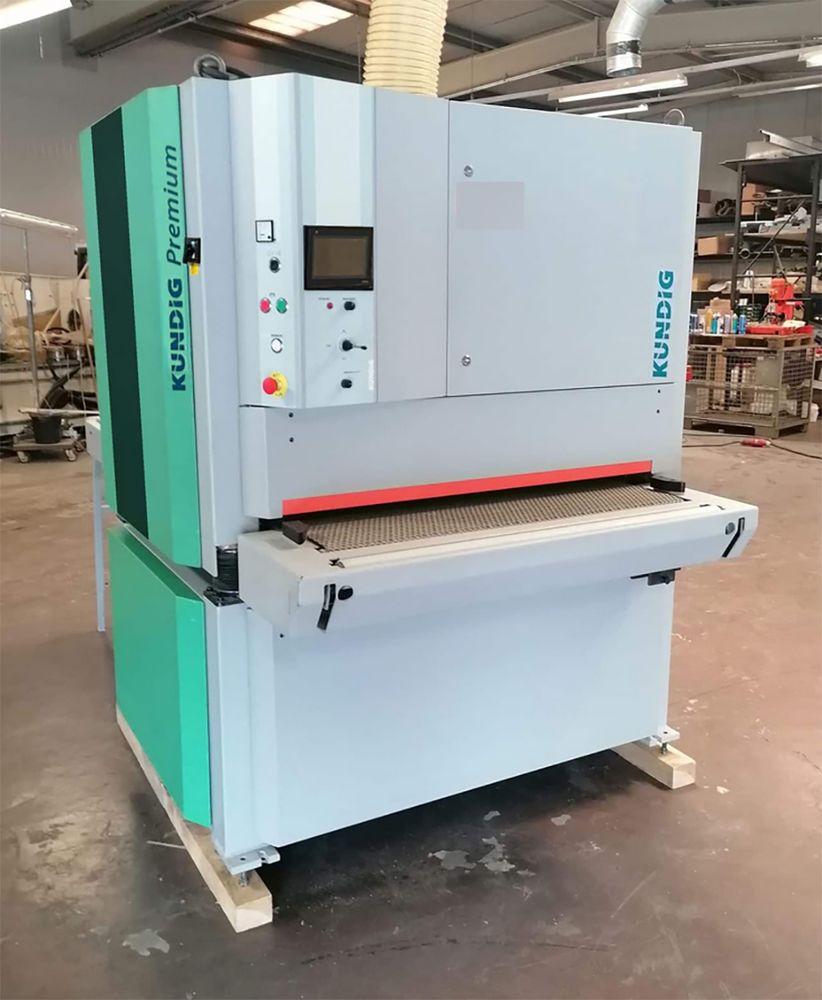

Kundig Premium-1 1100 K

CONSTANT TABLE MACHINE / automatic head feed
Widebelt calibration and fine grinding machine
Combination unit with grooved rubber contact roller in proven hardness
Contact roller level infinitely adjustable according to grit scale
Pneumatic lifting/lowering of the contact roller
Pneumatic grinding pad with quick-change sliding surface and precision pressure regulator
Parallel spring-loaded, ground steel pressure roller at the infeed
Rubber-coated pressure roller at the outfeed
Belt drive motor power 11 kW
Working width 1100 mm
Max. workpiece clearance height 200 mm
Feed speed 3-15 m/min. Infinitely variable speed control
Automatic workpiece thickness adjustment
ENORMATIC quick setting with feed release (for long workpieces)
PLC control with touchscreen and teach-in function for automating and managing all work programs
Infeed and outfeed tables with roller supports
Machine is workshop-tested and in very good condition
First delivery 2016 from training workshop / retirement
