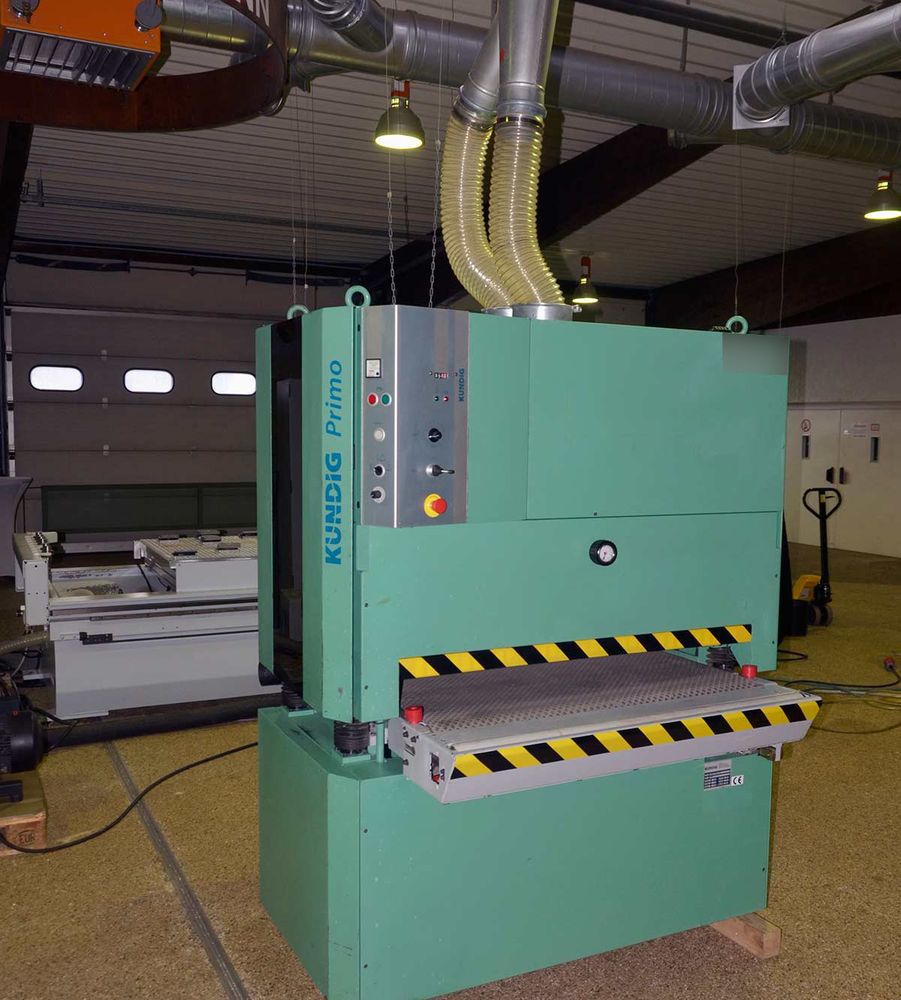

Kundig Primo 1100
EUROPE (Western and Northern)
Wide belt sander
Machine with fixed work/feed table, automatic aggregate feed from above, wide belt calibration fine grinding machine
Combination aggregate contact roller and grinding shoe aggregate with electronically controlled segment grinding shoe
Contact roller level continuously adjustable according to grain scale
Pneumatically adjustable segment sanding shoe
Infeed table with roller support and electric adjustment via digital display
Working width 1.100 mm
Working thickness 3–16 mm
Feed speed 3–15 m/min. infinitely adjustable via inverter
B belt drive motor power approx. 9 kW
Canding belt speed infinitely adjustable via inverter
Automatic workpiece thickness adjustment via ENORMATIC quick adjustment
Aautomatic belt cleaning pneumatically controlled
2 extraction connections Ø=180 mm
Joy stick function controls, side door with window
Sanding belt dimensions: 1.120 x 2.000 mm
Weight: approx. 1.650 kg, various sanding belts, function-tested
In very good condition
