Essilor JESS
EUROPE (Western and Northern)
• Centering screen for automatic calculation of offset values
• Next-generation accessories designed to minimize the number of operations
• Self-maintenance menus: automatic cleaning, calibration, and testing
• Intuitive and customizable interface
The narrowest (18 mm flat edge) and widest shapes
The most delicate premium care and the latest materials
• Polishing of flat angles and bevels
• JESS grooving and chamfering are just as easy
• Chamfering expertise applied to grooving
• Optimal position calculated based on lens thickness and gauge shape
• Customizable width and depth according to preferences or mounting configurations
• Integrated 3D technology at every stage: tracing before displacement calculation and compliance with specifications
• Automatic beveling guarantees a perfect lens fit and a beautiful mount
• Cycle EASTTM protects fractal lenses from any risk of decentering
• Custom bevels for complex mounts
• Flexible chamfering ensures consistency at all points
• Patented system with flexible, angled wheel
• Can be used on the front and/or back surface

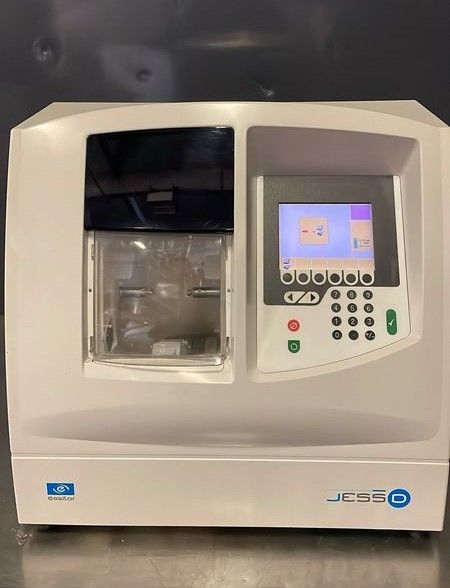

• Digital edger with 3D bevel display
• Sequential front/back tracing Roughing
• Display of the finished lens before machining (1:1 scale)
• Polishing
• Self-test/Self-calibration
• Automatic wheel cleaning
Statistics/Technical history

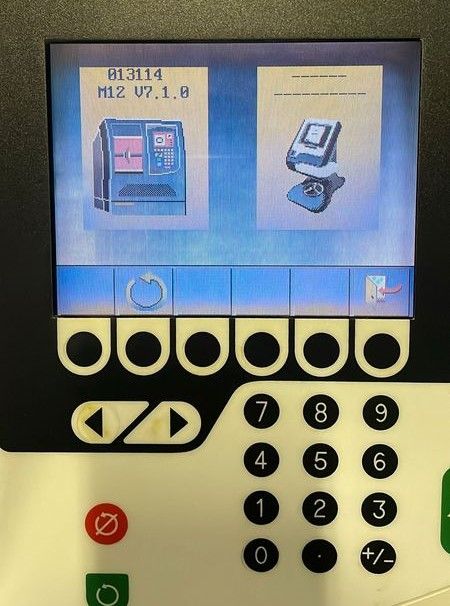

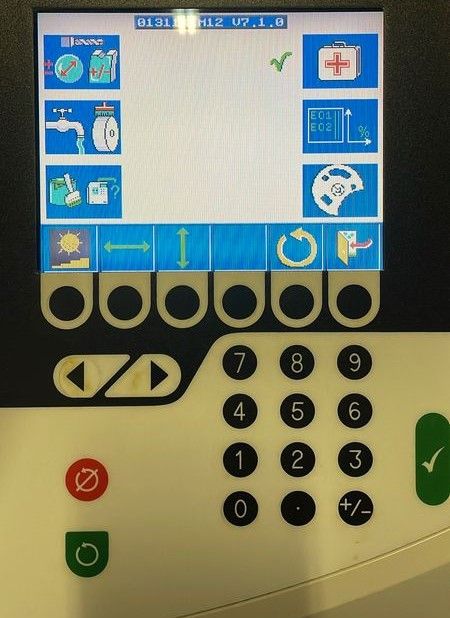

• Color screen: 5.7 inches

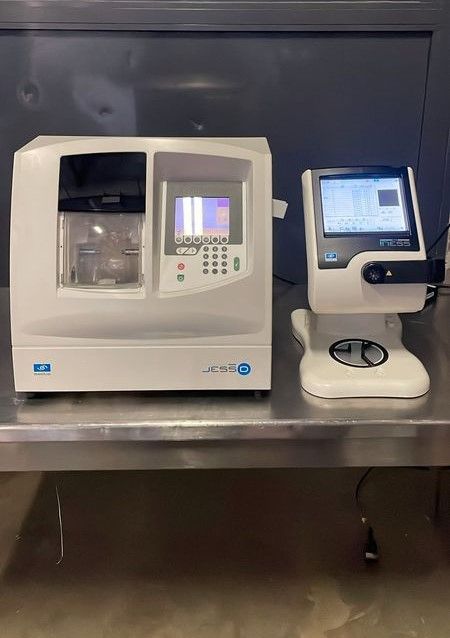

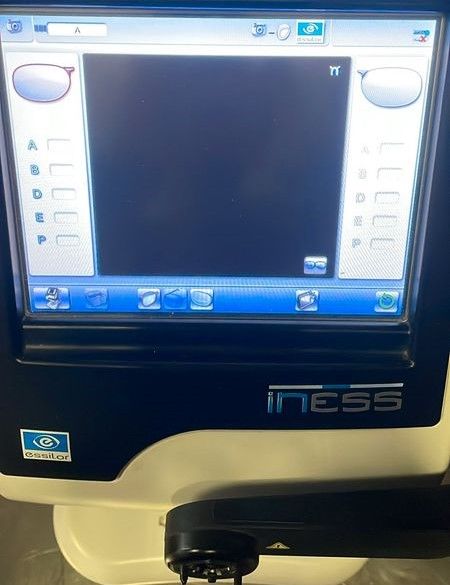

• Communication with the Essilor Tesa plotter and the e-Tess plotter
• Compliant with ISO 16284 (OMA 3.04 compatible)
• Dimensions: 1535 mm x 410 mm x 568 mm
• Weight: 67 kg
• Power supply: 230 V/50 Hz or 115 V/60 Hz
Power consumption: 1350 W
• CE conformity marking
